AD2722 Audio Analyzer Ultra Low Noise 1M Point FFT Benchmarking AP Audio Tester
AD2722 Audio Analyzer delivers ultra-low noise, 1M-point FFT precision, and benchmarks against AP for superior audio testing performance.
MOQ: 1
Price: To be quoted
Standard Packaging: satety plastic tool box or plywood package
Payment Method: T/T
Product Description

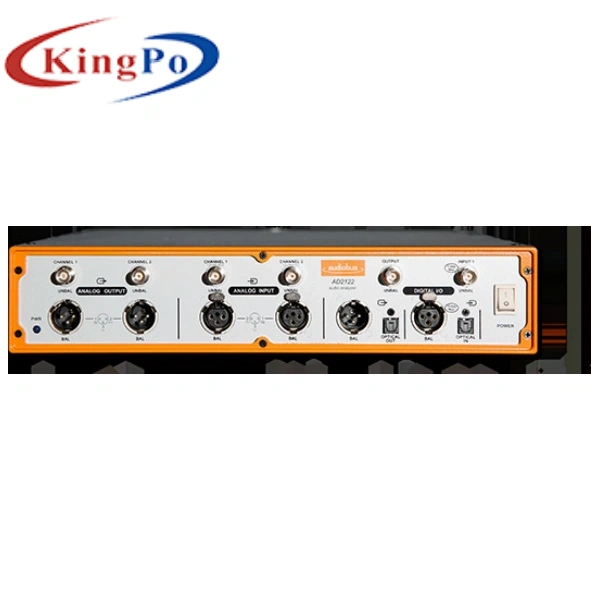

AD2722 audio analyzer
AD2722 is by far the industry’s best audio analyzer in terms of performance and number of functions.
AD2722 meets extremely demanding performance indicators. It combines outstanding performance, versatile digital I/O interface with fast running and intuitive measurement software.
With typical -120dB residual distortion (even 5dB lower than that of SYS-2722, an industry standard product ) and up to 1MHz bandwidth, it is far ahead of all other audio analyzers and the sampling length of the FFT spectrum analyzer can reach as high as 1.2M points.
Detail Information
| Durability: | High/Medium/Low | Function: | Testing |
| Maintenance: | Easy/Difficult | Portability: | Portable/Non-Portable |
| Power Supply: | AC/DC/Battery | Safety Features: | Overload/Short Circuit Protection |
| Size: | Small/Medium/Large | Software: | Compatible/Upgradable |
| Type: | Test Equipment | Warranty: | Yes/ |
| Highlight: | AD2722 Audio Analyzer, Ultra Low Noise Audio Analyzer, Benchmarking AP Audio Tester | ||
Get Free Quote of AD2722 Audio Analyzer Ultra Low Noise 1M Point FFT Benchmarking AP Audio Tester

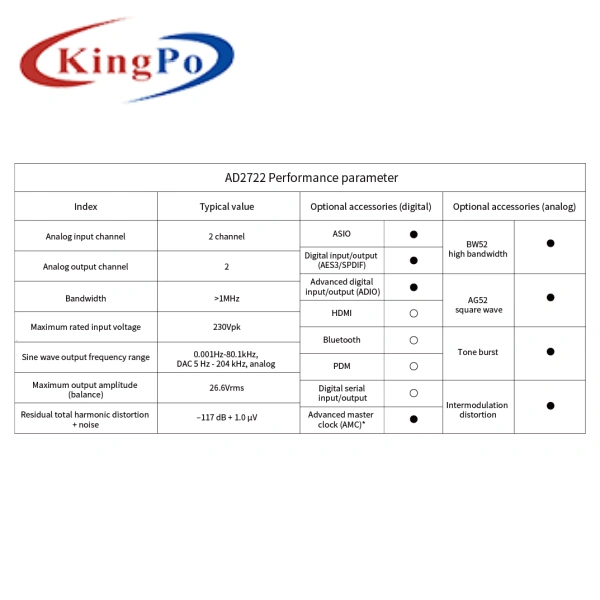

Five Technical Advantages
- Signal source: 5Hz–204kHz (analog) 0.1Hz-80kHz (DAC), can play signals in .wav format
- Analog bandwidth: Up to 1000KHz on single channel, 500KHz on dual channel, simultaneous
- Signal source distortion: THD+N: -120dB (20Hz–20KHz)

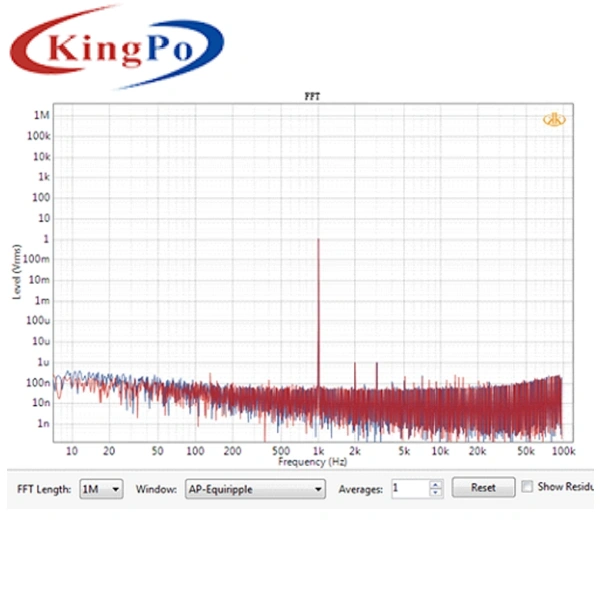

- FFT length: 1.2M, FFT, oscilloscope and test data can be obtained at the same time

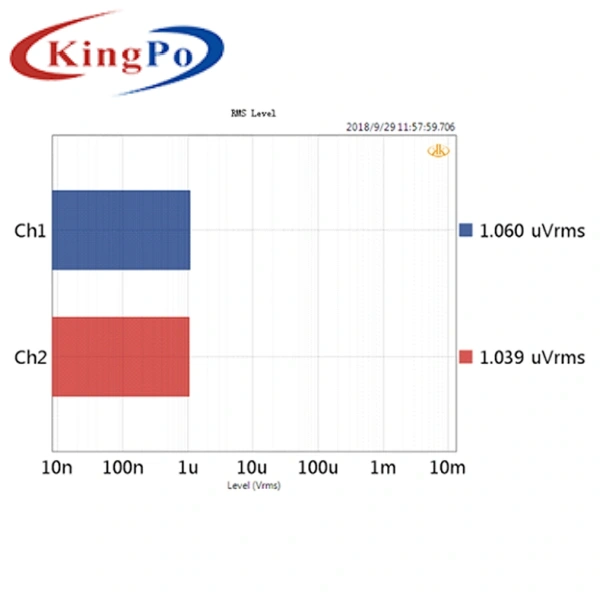

- Background Noise (analog): 1uv
Detail Display - AD2722 Audio Analyzer Ultra Low Noise 1M Point FFT Benchmarking AP Audio Tester
