Aluminium Foil CDV Status IEC 62368 Edition 3- Figure49 WPC Defined Metal Objects
IEC62368-3 Aluminium Foil enables precise FOD detection and temperature rise tests for Qi wireless charging safety compliance.
MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: 7 working days
Payment Method: T/T
Supply Capacity: 10000 pcs per month
Product Description

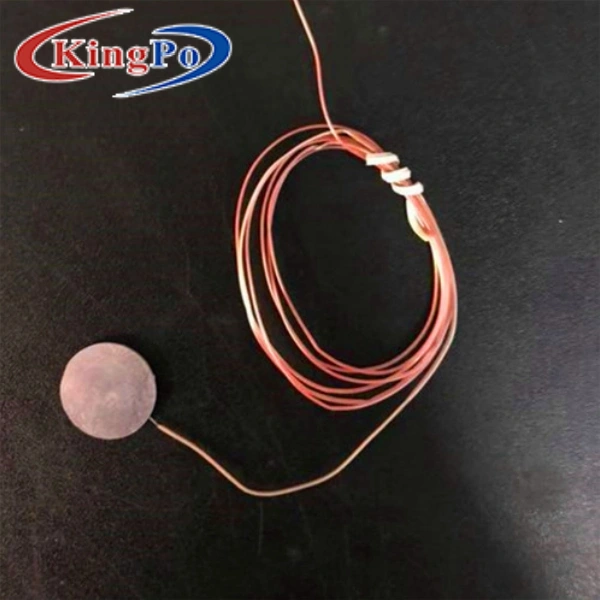

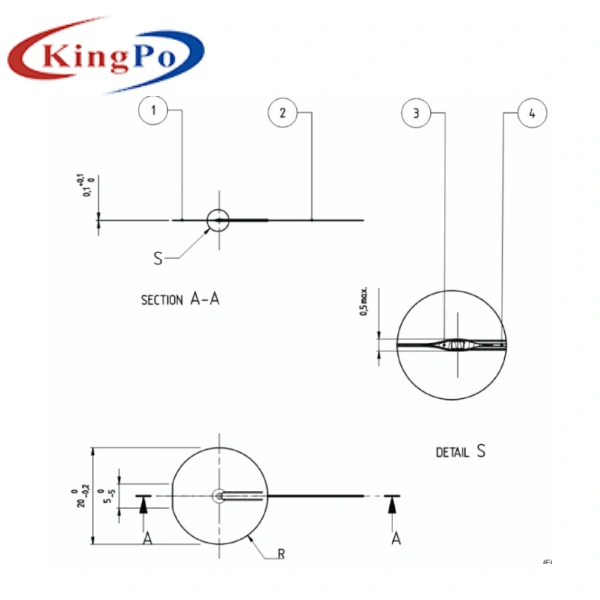

IEC CDV 62368-1/Ed3-Figure 49(including thermocouples)
Description
The Qi Foreign Objects are WPC defined metal objects that can be placed between Qi wireless transmitters and receivers and used to evaluate the FOD operation and performance. These objects may be used for conducting temperature rise tests required for both transmitter and receivers.
Detail Information
| Place of Origin | China | Brand Name | Kingpo |
| Certification | Iso9001 Ce | Model Number | IEC 62368 Edition 3-figure49 |
| Standard: | IEC 62368 Edition 3 | Usage: | For Wireless Charge |
| Material: | Aluminium | Thermocouple: | K Type |
| Highlight: | av test equipment, tv test equipment | ||
Get Free Quote of Aluminium Foil CDV Status IEC 62368 Edition 3- Figure49 WPC Defined Metal Objects
Application
Product developers looking to quickly characterize and test wireless power transmitter and receiver foreign object detection (FOD) performance. WPC specified foreign objects with attached thermocouples are used to monitor temperature rise at the interface surface per WPC requirements. These objects are useful for design debugging, characterization/tuning, and Qi pre-compliance testing.
Features

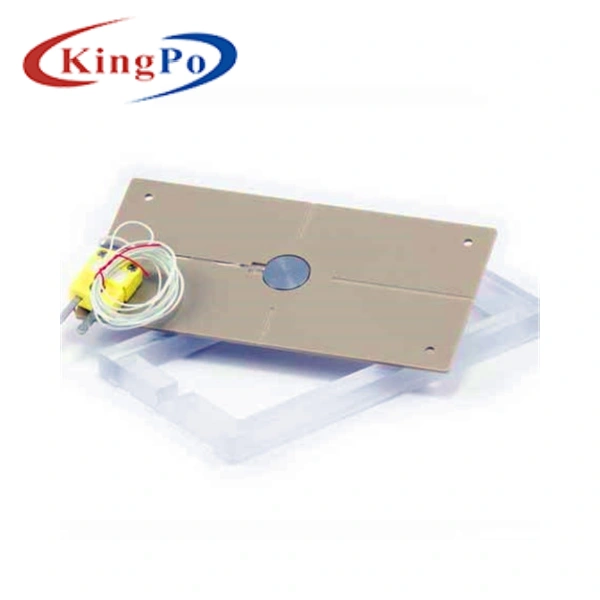

• Centered Aluminum Disc foreign object specified by WPC V1.2
• Mounted in PEEK high temp plastic frame
• Includes K-type thermocouples and connectors
• Adjustable alignment fixture with 5mm graduations included for aligning
TPR#5 coil holder and AVID’s Low and Medium Power FOD Receiver coil
holder
Test Modes
- Can be used to run WPC thermal compliance tests for FOD
- Can be used to help characterize and adjust FOD detection algorithms and thresholds for V1.2 and newer transmitters

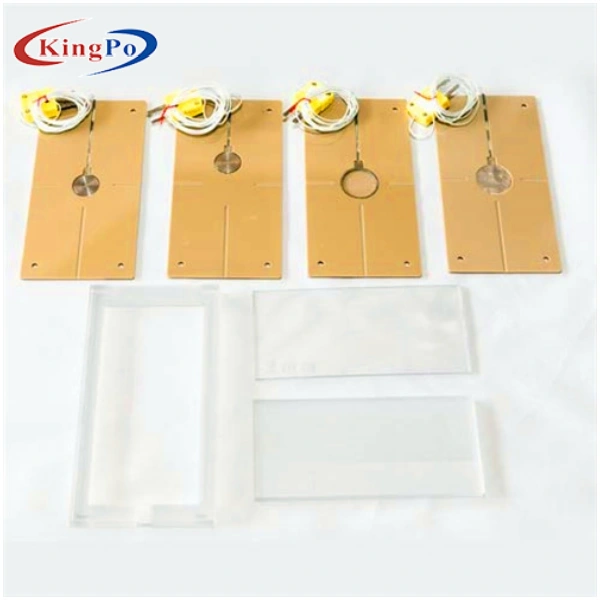

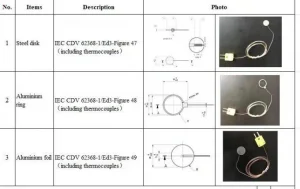

| 1 | Steel disk | IEC CDV 62368-1/Ed3-Figure 47 |
| 2 | Aluminium ring | IEC CDV 62368-1/Ed3-Figure 48 |
| 3 | Aluminium foil | IEC CDV 62368-1/Ed3-Figure 49 |
