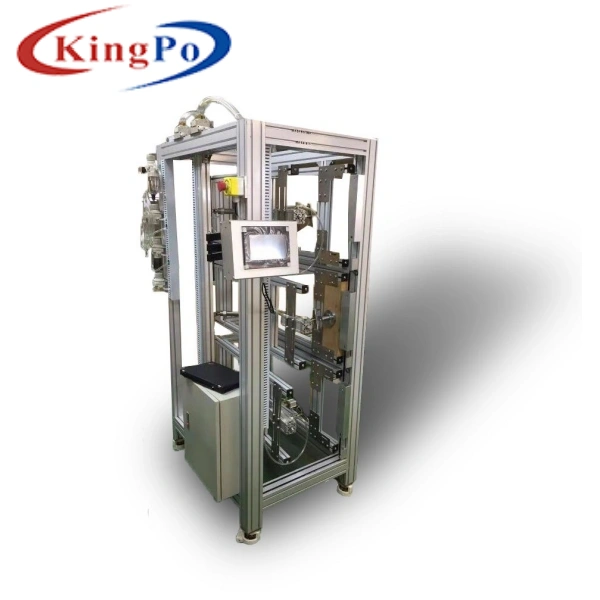

ANSI / BHMA A156 Door Lock Durability Tester / Fingerprint Lock Durability Tester
MOQ: 1
Standard Packaging: 100*100*100CM
Delivery Period: 50
Supply Capacity: 100PCS
Products Categories
Get A Free Quote
Product Description
The door lock durability testing machine (US standard) is designed and manufactured strictly according to the latest standards of ANSI/BHMA A156.2,ANSI/BHMA A156.13,ANSI/BHMA A156.25 and ANSI/BHMA A156.39, which is suitable for certification organization laboratory, and can also be used for product design verification before factory production and sampling test of products in production. The equipment uses PLC control, touch screen set test program, rotary cylinder operation handle (grip), meet the standard ANSI/BHMA A156.2,ANSI. BHMA A156.13,ANSI/BHMA A156.25 and ANSI/BHMA A156.39 latest version test requirements.
Detail Information
| Place of Origin | China | Brand Name | KingPo |
| Certification | ISO9001 | Power: | Electronic,1.5kW |
| Usage: | Geometry Measuring Instrument | Application: | Motor Production Testing |
| Color: | Customised | Product Name: | Hydraulic Comprehensive Test Bed,test Bench For Electrical Workshop,Electric Motor Testing Dynamometer |
| Highlight: | electric motor testing equipment, brushless motor tester | ||
Get Free Quote of ANSI / BHMA A156 Door Lock Durability Tester / Fingerprint Lock Durability Tester
Main Technical Parameters
- test bench frame: aluminum profile stand alone frame ,(stand-alone test machine);
- 6 stations (or 3 stations);
- test bench space (overalldimension:1.5m (L) X1m (W) X2.0m (H));
- Standard door size Test Door:36in wide (width);
- Lock Block Specification :400 x130x40mm;
- lock handle operating angle (handle operating angle):0~180 degrees adjustable;
- handle torque (door handle operating torque:max.5Nm;)
- closing force (closing force):22N &44N, optional;
- life frequency :25~30 times per minute, adjustable speed;
- Touch screen (HMI): Siemens, Set for cycle number and test speed life times set, power off hold count display;
- Pneumatic components: SMC.
