Aviation DC Brushless Electric Motor Testing System Equipment / Comprehensive Test Bench
MOQ: 1
Price: To be quoted
Standard Packaging: satety plastic tool box or plywood package
Payment Method: T/T
Supply Capacity: 20 per month
Product Description
Name: Aviation Motor Test System
Model: CMT-2010AS
Product introduction:

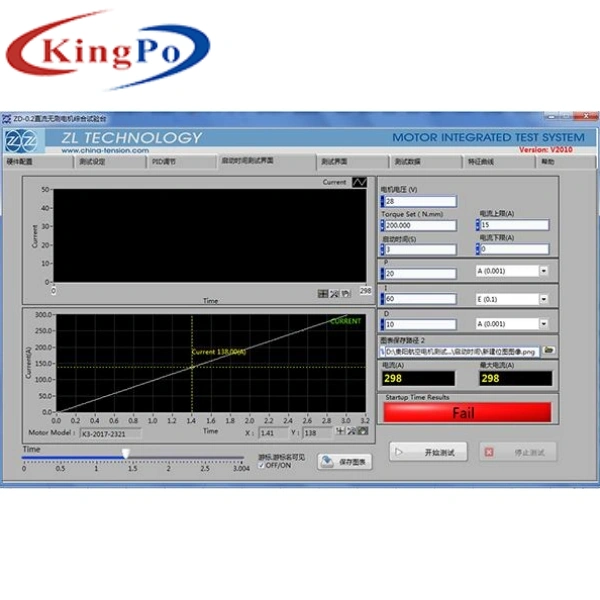

CMT-2010AS DC brushless motor comprehensive test bench can test voltage, current, input/output power, efficiency, torque, speed, steering, start-up time (at 240W rated output power) and maximum current during start-up, motor body and controller Thoroughly immersed in the fuel tank for testing. The test software is written in LABVIEW, which can realize manual test or automatic test. It can display and save voltage, current, power, efficiency and other related data and related curves. It can automatically record current data by manual click or timing, and generate customer specified. The test form, the system has the characteristics of simplification, serialization, generalization, modularization and combination. The control interface visualizes the software interface to guide the operation, and the operation process is simple and convenient.
Detail Information
| Place of Origin | China | Brand Name | KingPo |
| Certification | Calibration certificate | Model Number | CMT-2010AS |
| Measurement Accuracy Of Torque: | 0.5% Of Full Scale | Measurement Accuracy Of Voltage/current: | 0.2% Of Full Scale |
| Ccuracy Of Rotation Speed: | 0.2% Of Full Scale | Test Software: | Manualor Automatic Test |
| Single-phase AC And DC Power Meter: | WT310 (Yokogawa, Japan) | IO Card, PCI-GPIB, 2007: | 16 Digital Outputs And 16 Digital Inputs 32 Single-ended Analog And 16 Differential Analog Inputs NI PCI-GPIB |
| Highlight: | electric motor testing equipment, brushless motor tester | ||
Get Free Quote of Aviation DC Brushless Electric Motor Testing System Equipment / Comprehensive Test Bench
Features
- Test voltage, current, input/output power, efficiency, torque, speed, steering, start-up time (at 240W rated output power), and maximum current at startup
- Test accuracy: The measurement accuracy of torque is 0.5% of full scale, the measurement accuracy of voltage/current is 0.2% of full scale, and the measurement accuracy of rotation speed is 0.2% of full scale;
- The test software can realize two modes of m4.
- The test software can manually record the current data manually or periodically, and generate test forms according to the form format provided by the customer.
- The test software can display and save the related data and related curves of voltage, current, power, efficiency, etc.anual test or automatic test;
Selection Reference
| Controller model | Sampling speed | Available Communication Protocol | Communication Method | Providing Test Software | Features |
| HDC-1010 | 5-10PCS/S | Yes | RS-232 | no | Simple operation, low price, suitable for ordinary production lines
|
| HDC-1010-S | 5-10PCS/S | Yes | RS-232 | Yes | |
| HDC-1020 | 20PCS/S | no | USB2.0 | Yes | Fast collection speed and wide test range, suitable for common production lines and common experiments
|
| HDC-1030 | 25PCS/S | no | USB2.0 | Yes | |
| HDC-1040 | 100PCS/S | no | GPIB/RS232 | Yes | Fast acquisition speed, wide test range and strong anti-interference performance, suitable for production lines and laboratories with high requirements |
| HDC-2010 | 100PCS/S | no | GPIB/RS232 | Yes |
Configuration
| No. | Component | Technical requirements |
| 1 | Single-phase AC and DC power meter | WT310 (Yokogawa, Japan) |
| 2 | Motor load controller | Adopt 2010 controller, usb port communication, fast transmission speed and good stability. |
| 3 | Industrial control computer | Get 20 torque and speed points per second |
| 4 | Industrial computer display | |
| 5 | Industrial computer display | 16 digital outputs and 16 digital inputs 32 single-ended analog and 16 differential analog inputs NI PCI-GPIB |
| 6 | IO card | Silent fan cooling; torque accuracy ± 0.5% FS; accuracy ± 0.1% FS. AHD-103 short board (torque 10kg.cm) |
| 7 | PCI-GPIB, 2007 | 80V 120A 3000W (Brand: Itech) Model: IT6522D |
| 8 | Dynamometer | 1015*600*600 |
| 9 | Switching power supply | Standard test machine |
| 10 | Test cabinet | Length 37.5CM, 0~5VDC signal output Brand: Taifeng Motor Boat Supplies Model: Oil level alarm |
| 11 | Test machine | Chinese interface; with no-load test; load test; insulation withstand voltage test and other functions, can save data, output alarm and other functions |
