Bump Test Machine , IT Test Equipment For Electronic Apparatus Testing , Max Load 100kg
MOQ: 1
Price: To be Quoted
Standard Packaging: safety tool box or plywood pack.
Delivery Period: 25 working days
Payment Method: T/T
Supply Capacity: 100 sets per month
Product Description
IEC60065 clause 12.1.1 Bump Test Machine for Electronic Apparatus Testing with A Mass Over 7 kg
Descriptions
The KP-GT065 Bump Tester Machine is designed as per IEC60065-clause 12.1.1 ,which is used to tesr audio, video and similar electronic apparatus Bump test Apparatus with a mass exceeding 7 kg are subjected to the following test:
The apparatus is placed on a horizontal support of wood which is allowed to fall 50 times from a height of 5 cm onto a wooden table. After the test, the apparatus shall show no damage in the sense of this standard.
Detail Information
| Place of Origin | China | Brand Name | Kingpo |
| Certification | Iso9001 Ce | Model Number | KP-GT065 |
| Standard: | IEC60065 Clause 12.1.1 | Rate Of Falls: | 7 Times Per Min |
| Fall Height: | 50mm | Testing Times: | Max 9999 Times |
| Dimension: | 2800*800*1000mm | Table Size: | 2500*500mm |
| Max. Load: | 100kg | ||
| Highlight: | av test equipment, tv signal tester | ||
Get Free Quote of Bump Test Machine , IT Test Equipment For Electronic Apparatus Testing , Max Load 100kg
Technical Parameters
- Power Supply: 380V 50Hz
- Rate of falls: 7 times per min
- Fall height:50mm
- Testing times: Maximum 9999 times

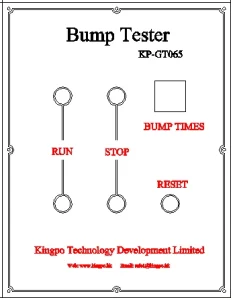

Operation Procedures
Read relevant standards before testing and this instruction manual to operate the testing machine correctly and obtain the correct testing results.

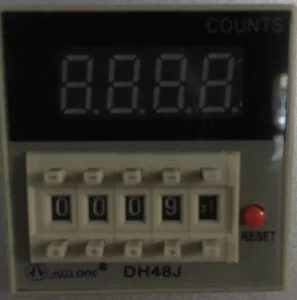

1. Through the counter on the + or – to set the falling times
2.Place the sample
3. Press the “RUN” button, the test starts.
4. After reaching the setting value, the tester stop. Take out the samples and judge the testing results.
