Glow Wire Test Apparatus, Glow Wire Tester Without Test Chamber , IEC 60695-2-10 Glow Wire Tester
IEC60695-2-10 Glow Wire Tester precisely assesses material ignition resistance without a test chamber for critical safety compliance.
MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Payment Method: T/T
Delivery Period: 30 working days
Supply Capacity: 3 sets per month
Products Categories
Get A Free Quote
Product Description
- Glow wire test is a simulation experiment project using non-flame ignition source in accordance to standard requirements of IEC60695-2-10,UL 746A .It makes required material(＞77%Ni/20±1%Cr) and heating wire in required shape(Φ4mm-chromel-filament)heated up to test temperature( 550 ℃ ～ 960 ℃) and then broil the specimen using required pressure (0.95N±0.1N) for 30s at vertical direction;to check whether the specimen and bedding material ignite and lasting ignition time to test the ignition fatalness of electrical and electronic finished devices
- Test the ignition performance,ignition temperature (GWIT),solid insulating material and other solid combustible material,combustibility and flammability index(GWFI) .
It can be applied to research,production and quality testing department of electrical and electronic devices and component parts like lighting equipment,low voltage apparatus,eletrotechnical instrument,etc.
Detail Information
| Place of Origin | China | Brand Name | KingPo |
| Certification | Iso9001 Ce | Model Number | KP-GWT01 |
| Glow Wire Temp.: | 0~1000℃±2℃ Constantly Adjustable | Thermocouple: | Φ1.0 Mm |
| Glow Wire: | Φ4 Mm (＞77%Ni/20±1%Cr） | Force: | 0.95N±0.1N |
| Test Speed: | 10-25mm/s | Current: | Accuracy ±2.5% Or More Accurate |
| Voltage: | Stable ±2% During The Test | Silver Foil: | Purity ＞99.8% |
| Standard: | IEC60695-11-20 Standard | Timing Accuracy: | 0.1s |
| Highlight: | Glow Wire Test Equipment, IEC 60695-2-10 Glow Wire Tester | ||
Get Free Quote of Glow Wire Test Apparatus, Glow Wire Tester Without Test Chamber , IEC 60695-2-10 Glow Wire Tester
Technical Parameter
| 1 | Glow Wire Temp | 100~1000℃±2℃ constantly adjustable |
| 2 | Broil Time | 0-999.9s±0.1s adjustable (generally choose 30s) |
| 3 | Ignition Time | 0-999.9s±0.1s |
| 4 | Smother Time | 0-999.9s±0.1s |
| 5 | Thermocouple | Φ1.0mm K type |
| 6 | Glow Wire | Φ4 mm (＞77%Ni/20±1%Cr) |
| 7 | Broil Into Depth | 7mm±0.5mm |
| 8 | Specimen Pressure | 0.95N±0.1N |
| 9 | Test Speed | 10-25mm/s |
| 10 | U Head Standard | IEC60695-2-10. |
| 11 | Test Procedure | Manual control,independent exhaust system |
| 12 | Reference Standard | IEC60695-2-10,UL746A |
| 13 | External Dimension | 550mmW×350mmD×600mm |

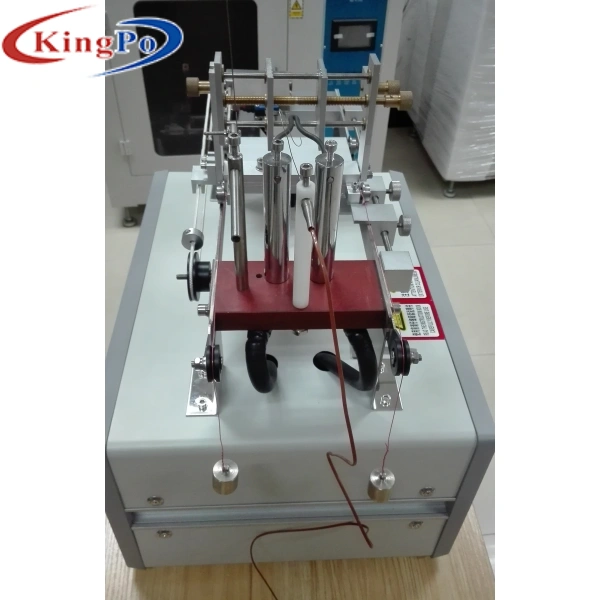

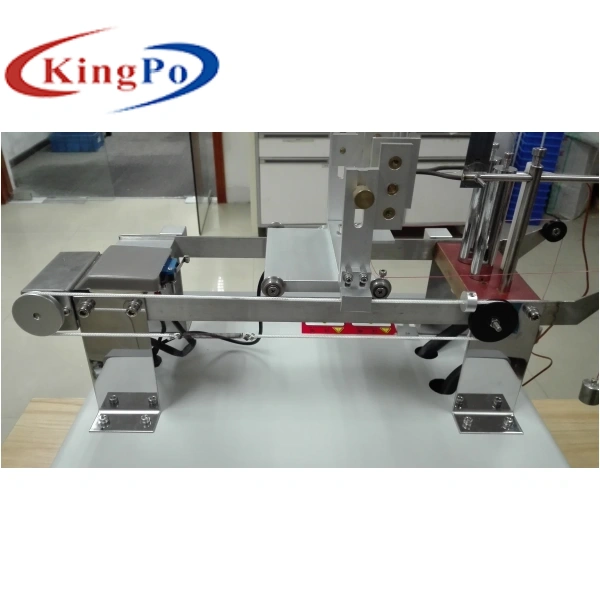

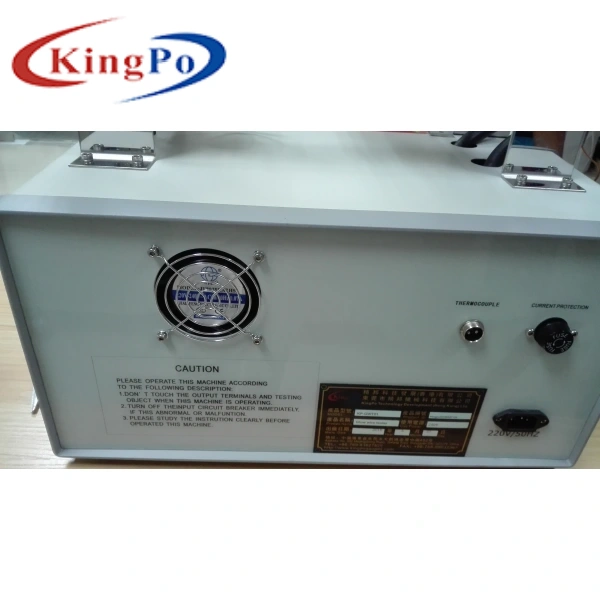

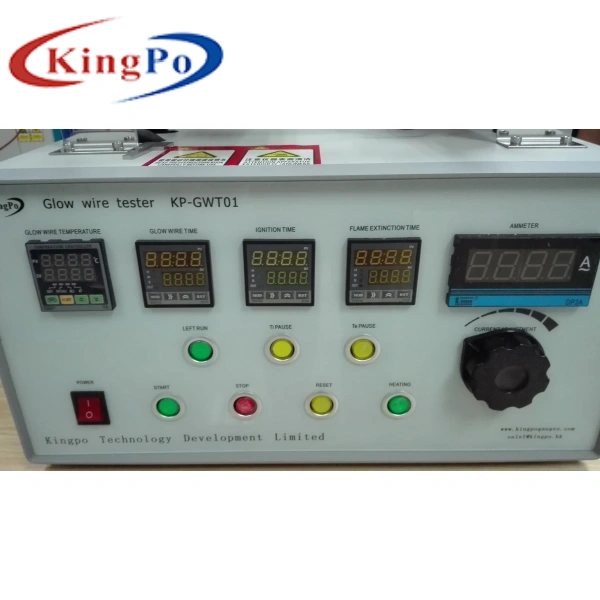

Detail Display - Glow Wire Test Apparatus, Glow Wire Tester Without Test Chamber , IEC 60695-2-10 Glow Wire Tester
