Huawei And Iphone Wire Cone Rotation Testing Machine Simulating Under Certain Load Conditions
This Huawei and iPhone Wire Cone Rotation Testing Machine simulates real-world load conditions to ensure connector durability and compliance.
MOQ: 1
Price: To be Quoted
Standard Packaging: satety plastic tool box or plywood package.
Delivery Period: 25
Payment Method: T/T
Supply Capacity: 50 sets per month
Products Categories
Get A Free Quote
Product Description

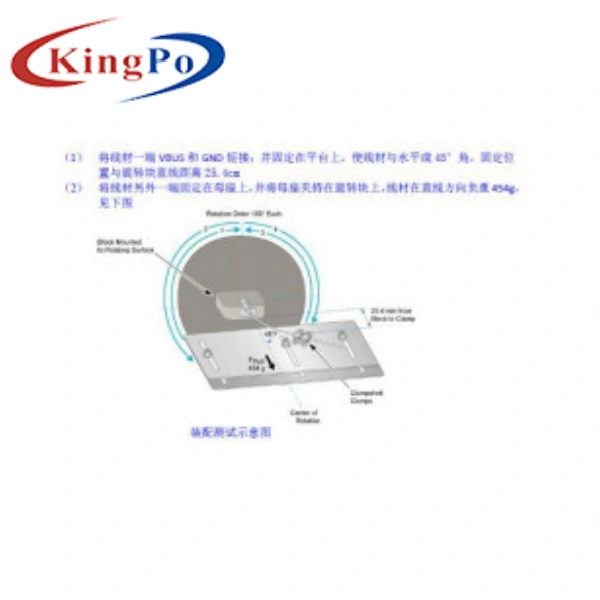

HD-6159E instrument is suitable for testing the service life of wires and planes with a certain degree of taper rotation, and simulating the service life of the tested products under certain load and load conditions. The instrument has built-in low-voltage and high-current load, which can be externally connected with a momentary break test products.The instrument can tests the product for a momentary break.
Detail Information
| Place of Origin | China | Brand Name | KingPo |
| Certification | Calibration certificate | Model Number | HD-6159E |
| Control Mode: | 1.servo Motor + PLC + Touch Screen | Ixture Stations: | 3 Group |
| Cone Test Angle: | 0– 3600 Degrees | Speed Setting: | 2~60 R/m |
| Number Of Tests: | 0~999999 | Test Angle Adjustment: | 45° Or Natural Vertical (horizontal) Test Two Adjustable |
| Highlight: | High Frequency Spark Tester, Bend Test Machine | ||
Get Free Quote of Huawei And Iphone Wire Cone Rotation Testing Machine Simulating Under Certain Load Conditions
Technical Parameters
- Control mode: servo motor + PLC + touch screen.
- group fixture stations: independent servo control for each group of fixtures.
- Cone test angle: 0– 3600 degrees (when the speed is 5—60r/m is arbitrarily set).
- Speed setting: 2~60 r/m can be set arbitrarily (the condition of 3.4 is required when the test angle is lower than 360 degrees).
- Number of tests: 0~999999 (each station is independently preset).
- Test angle adjustment: 45° or natural vertical (horizontal) test two adjustable (manual conversion by mechanical structure)
- The four stations can be started at the same time or they can be started separately.
- Independent test output voltage adjustable voltage 5—20V and load current 0.5–20A can be set arbitrarily in each station load test.
- Test mode: load, no load, instantaneous setting arbitrary (each station is set independently).
- This machine is equipped with the instantaneous signal stop function of the external momentary break test equipment NM-11B. (The equipment is provided by the customer)
- Power supply: AC 220V ± 10%, 50Hz, 60A.
- Ambient temperature: 0~40 °C.
- Ambient humidity: ≤ 85%.
- A place where there is no violent shaking, impact, vibration, or corrosive air.
