IEC 60335-2-84 Toilet Seat Endurance Test Apparatus Applying 1250N
MOQ: 1
Price: To be Quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: 30 working days
Payment Method: T/T
Supply Capacity: 10 sets per month
Products Categories
Get A Free Quote
Product Description

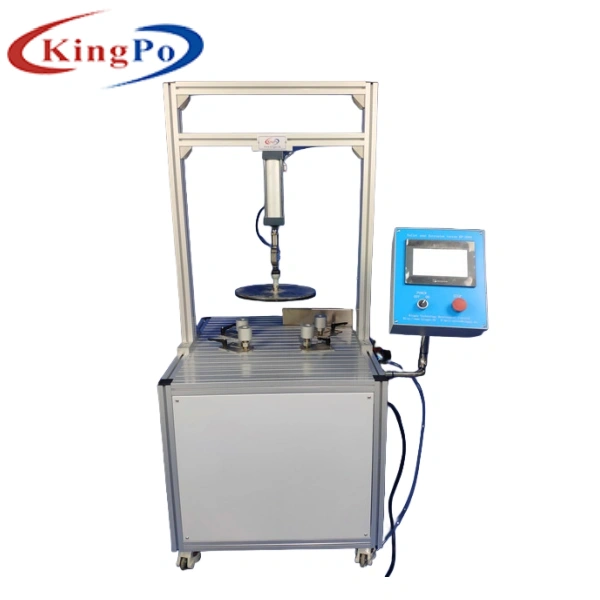

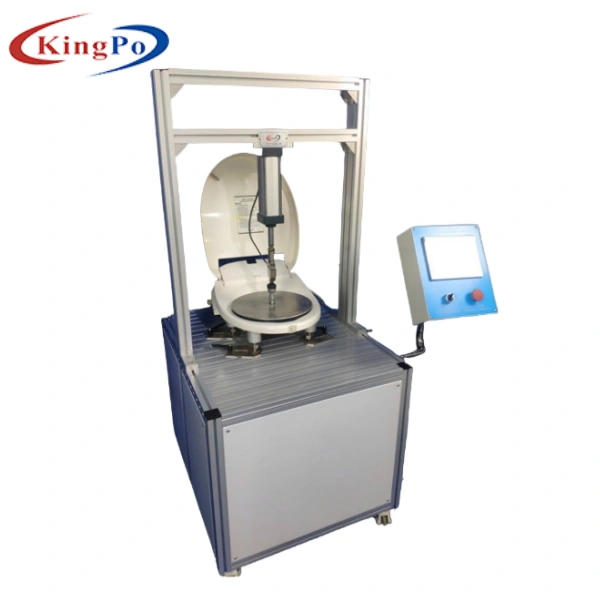

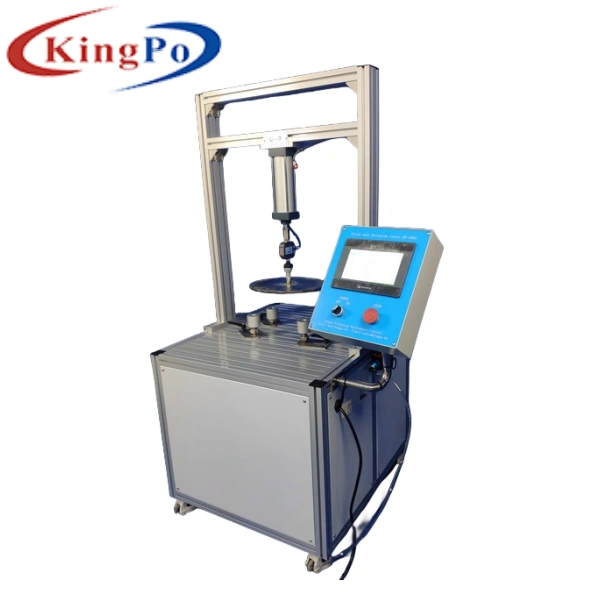

IEC 60335-2-84 Toilet Seat Endurance Test Apparatus Applying 1250N
TESTING AND MEASURING EQUIPMENT/ALLOWED SUBCONTRACTING
IEC 60335-2-84, 2nd Edition (2002) – A1/2008 – A2/2013
Household and similar electrical appliances – Safety – Part 2-84: Particular requirements for toilet appliances
Standard requirement
21 .103.1 The appliance is subjected to an evenly distributed force of 1250 N applied perpendicularly to the seat for 4s by a rubber disc having a thickness of 10 mm, a diameter of 300 mm and a shore A hardness of 70°, with a steel disc having a thickness of 5 mm and a diameter of 300 mm attached on its upper surface. The test is carried out 20000 times.
Detail Information
| Place of Origin | China | Brand Name | KingPo |
| Certification | Calibration Certificate | Model Number | IEC60335-2-84-Cl 21.103.1 |
| Standard: | IEC60335-2-84 | Force Range: | 0-2000N |
| Pressure Display: | Digital Pressure Sensor | Force Mode: | Cylinder |
| Rubber Disc: | Diameter 300mm, Thickness 10mm | Steel Disc: | Diameter 300mm, Thickness 5mm |
| Highlight: | IEC 60335-2-84 Endurance Test Apparatus, 1250N Toilet Seat Endurance Test Apparatus | ||
Get Free Quote of IEC 60335-2-84 Toilet Seat Endurance Test Apparatus Applying 1250N
Technical Parameters
- Force range: 0-2000N( adjustable By air pressure);
- Pressure display: digital pressure sensor;
- Force mode: cylinder
- Rubber disc: diameter 300mm, thickness 10mm
- Steel disc: diameter 300mm, thickness 5mm
- Hardness of rubber disc: a shore a hardness of 70°
- Count: 0-99999 times;
- Control mode: PLC+ touch screen;
- Frame: industrial aluminum support platform;
- Power supply: AC220± 10% V
- Dimensions: 1000W x 800D x 1400H mm.
- According to:IEC60335-2-84-Cl 21.103.1
