IEC 60598-2-21 Figure 2 Cold Bend Test Apparatus To Measure Dynamic Bending Performance Of Wire And Cable
IEC60598-2-21 Cold Bend Test Apparatus accurately measures dynamic bending performance to ensure wire and cable durability and compliance.
MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Payment Method: T/T
Supply Capacity: 1000 pcs
Products Categories
Get A Free Quote
Product Description

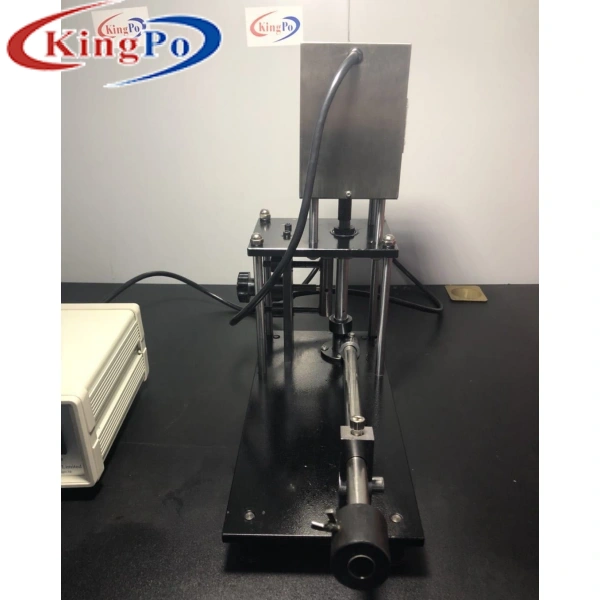

This Cold bend test apparatus is used to measure the dynamic bending performance of wire and cable under low temperature conditions, and is suitable for outer diameter less than or equal to 12.5mm round wire and cable or round insulated wire core is the wire and cable industry to test the bending performance of the product.
Detail Information
| Place of Origin | China | Brand Name | Kingpo |
| Certification | Calibration Certificate | Model Number | KP-CB02 |
| Standards: | IEC 60598-2-21 Figure 2 | Test Range: | Wire Diameter D 1～12.5mm |
| Diameter Of The Bobbin: | D≈(4~5)d | Motor Winding Speed: | 1 Rev / 5 Seconds |
| Minimum Operating Temperature: | -15 ° C ± 1 ° C | Test Purpose: | Measure Dynamic Bending Performance Under Low Temperature Conditions |
| Highlight: | High Frequency Spark Tester, Bend Test Machine | ||
Get Free Quote of IEC 60598-2-21 Figure 2 Cold Bend Test Apparatus To Measure Dynamic Bending Performance Of Wire And Cable
Technical Parameters
- Test range: Wire diameter d 1～12.5mm
- Diameter of the bobbin: D≈(4~5)d (d is the diameter of the sample)
- motor winding speed: 1 rev / 5 seconds
- the minimum operating temperature: -15 ° C ± 1 ° C
- the number of trials: one piece
- replace the test piece method: manual

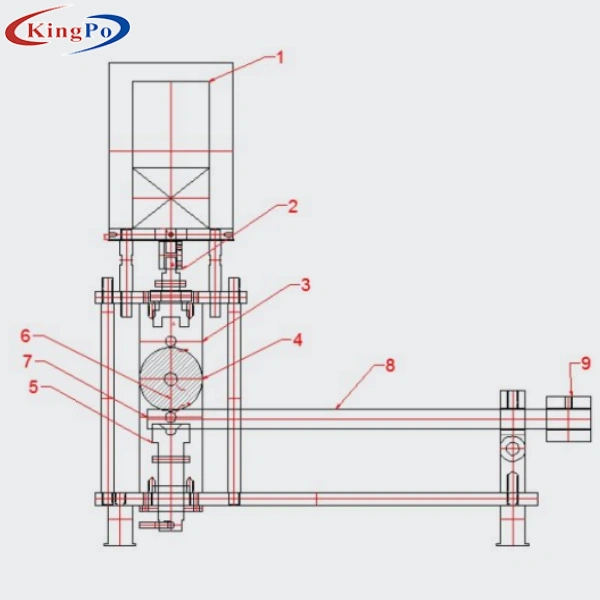

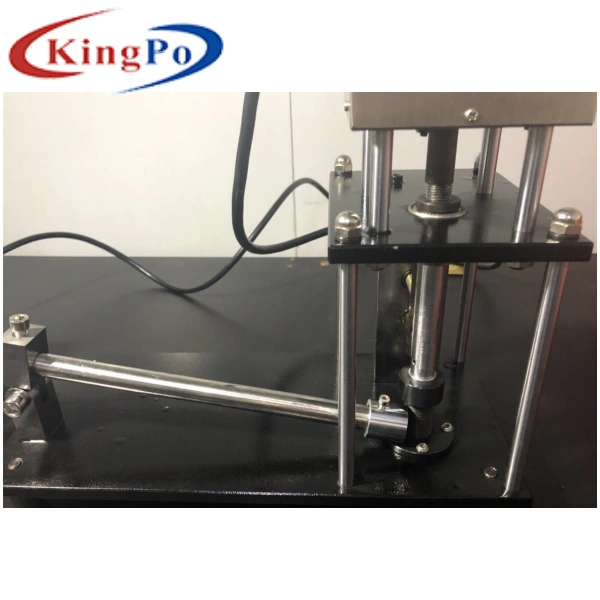

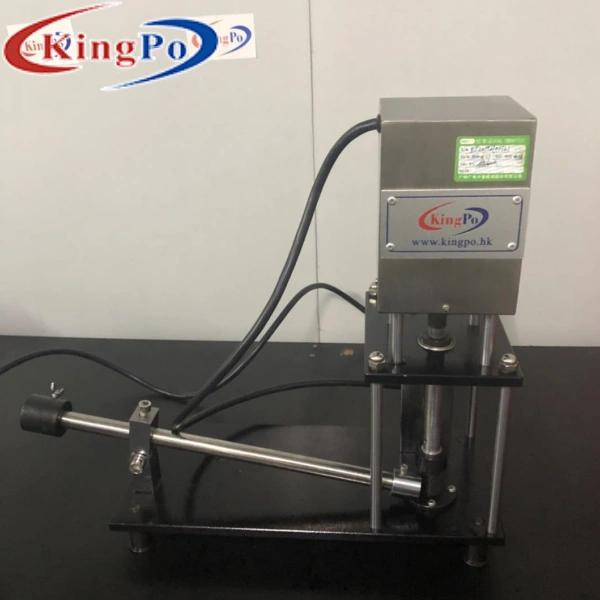

Detail Display - IEC 60598-2-21 Figure 2 Cold Bend Test Apparatus To Measure Dynamic Bending Performance Of Wire And Cable
