IEC 60601-2-52 Medical Bed Tester, Dynamic Forces due to Loading from Persons, Medical Beds Strength and Durability Tester
IEC 60601-2-52 Medical Bed Tester evaluates dynamic forces from person-loading, ensuring bed strength, durability, and patient safety compliance.
MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: 7 working days
Payment Method: T/T
Supply Capacity: 10 pcs per month
Products Categories
Get A Free Quote
Detail Information
| Place of Origin | China | Brand Name | Kingpo |
| Certification | ISO 17025 | Model Number | KP-6061C |
| Material: | Steel | Standard: | IEC60601-2-52 |
| Warranty: | 1 Year | ||
| Highlight: | IEC 60601-2-52 medical bed tester, medical bed strength tester, durability tester for medical beds | ||
Product Description

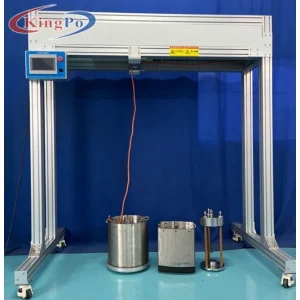

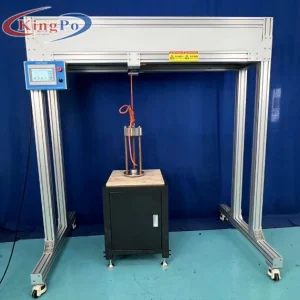

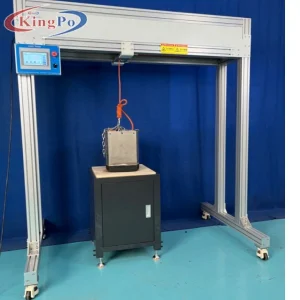

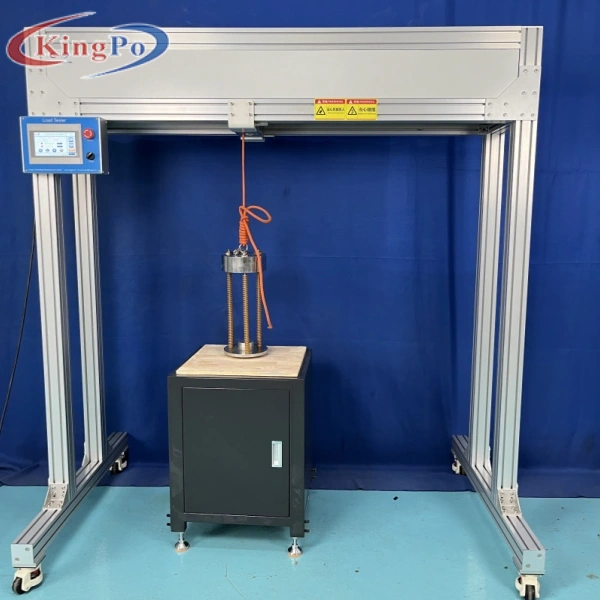

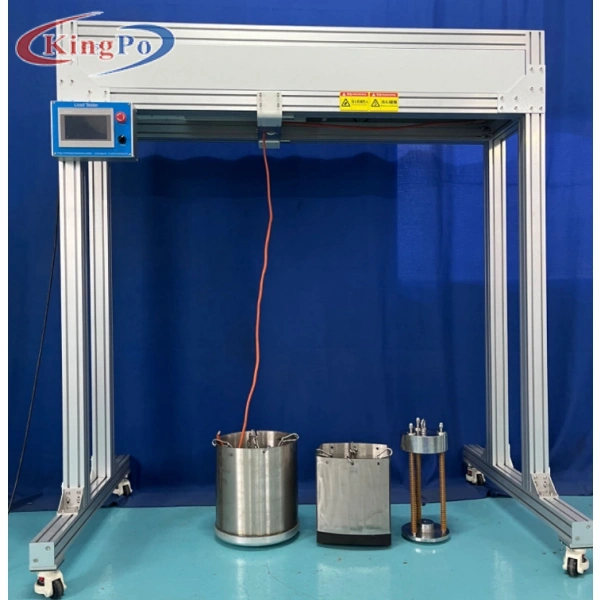

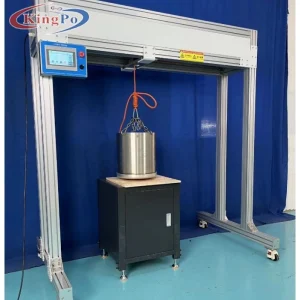

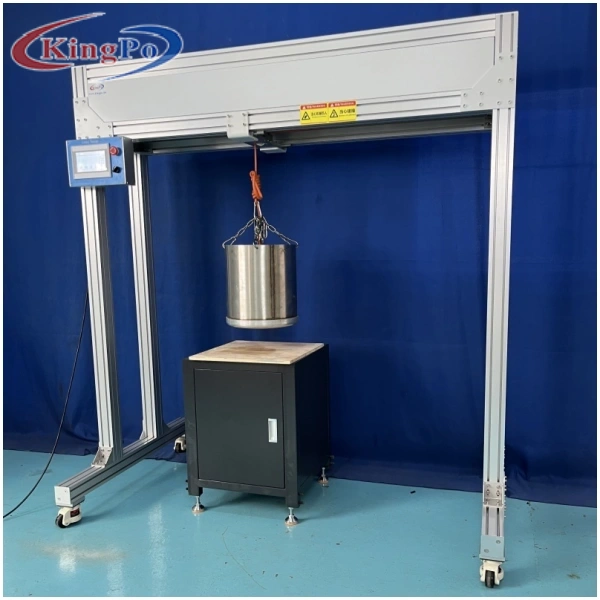

IEC 60601-2-52 Medical Bed Tester
Dynamic forces due to loading from persons, Medical Beds Strength and durability tester
- According to IEC60601-2-52 Section 201.9.8.3.3.1 for dynamic loading force tests from human weight
- According to IEC60601-2-52 Appendix CC.2.2 Impact test of mattress support table
- According to IEC60601 section 9.4.2.3 Instability
- According to IEC60601 section 9.8.3.3 human body test mass
IEC60601 section 9.8.3.3
- Extension mode: motor drive
- Impact height: 0~300mm adjustable
- Material of counterweight groove: stainless steel groove
- Weight: 0-1400N
- Weight: steel ball
- Weight model: Hard foam
- Number of shocks: 0-9999
Body Upper-Carriage Module
IEC60601-2-52 Section 201.9.8.3.3.1
- Lifting mode: servo motor + ball screw
- Test times: 0-99,999 times adjustable
- Force value: 0 ~ 1500N
- Automatic stop protection of upper and lower stroke
- Operating system: PLC+ touch screen
- The maximum width of the sample is 1.7m and the height is 1.2m
- Equipment frame: assembled from aluminum profiles
IEC60601-2-52 Appendix CC.2.2
- Impact height: 180mm (0-300mm can be set)
- Number of shocks: 0-99999 can be set
- Impactor: Manufactured according to GB 9706.252-2021- Figure CC.2
- Impactor: Diameter 200mm
- Impactor body weight: 17kg
- Total weight: 25kg
