IEC 60601-2-52 Medical Bed Tester, Side Rail Strength and Latch Reliability Tester
MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: 7 working days
Payment Method: T/T
Supply Capacity: 10 pcs per month
Detail Information
| Place of Origin | China | Brand Name | Kingpo |
| Certification | ISO 17025 | Model Number | KP-6061B |
| Brand Name: | Kingpo | Material: | Steel |
| Standard: | IEC60601-2-52 | Warranty: | 1 Year |
| Highlight: | medical bed tester IEC 60601-2-52, side rail strength tester medical, latch reliability tester medical bed | ||
Product Description

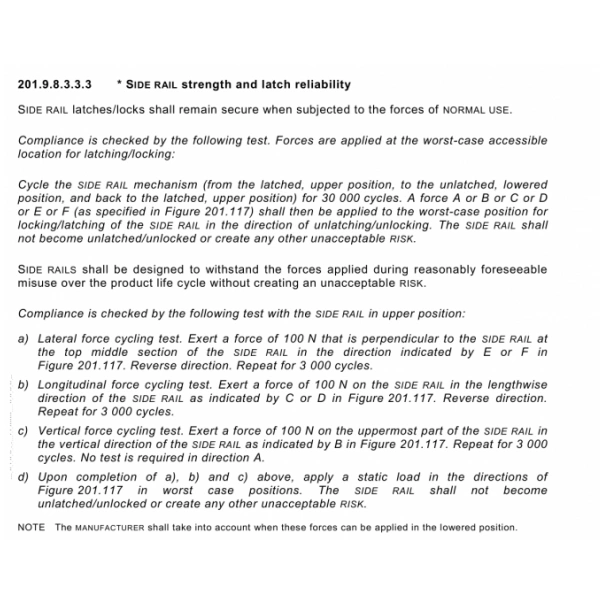

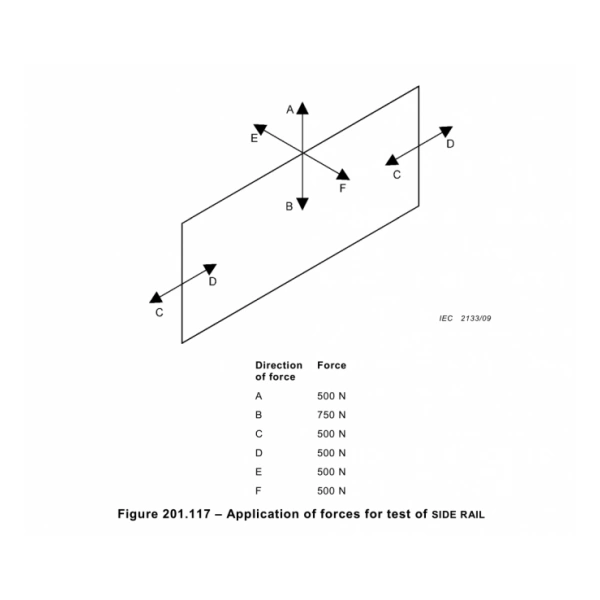

It meets the strength test of the side rails of Medical hospital beds in accordance with IEC 60601-2-52 “Medical electrical equipment – Part 2-52: Particular requirements for the basic safety and essential performance of medical beds” standard. It is designed and manufactured in accordance with the requirements of the 201.9.8.3.3.3 “Sidebar Strength and Locking Reliability” and the 201.9.8.3.3.4 dynamic test of tensile rods in the standard. It is applicable to the load and guardrail push-pull strength tests of medical hospital beds, elderly care beds, traditional Chinese medicine physiotherapy beds and other products. Tests on the strength of the simulated bed under load and the push-pull strength of the guardrail.
Get Free Quote of IEC 60601-2-52 Medical Bed Tester, Side Rail Strength and Latch Reliability Tester
Equipment Features
- Controlled by PLC program with 7-inch true-color TFT LCD touch screen display
- Uses servo motor to apply required force values
- Automatically collects data through high-precision sensors
- Test load force value can be set arbitrarily
- Load application time, peak acceleration capture function of test force
- Force stability retention function
- Automatic cycle test function after reaching set time
- Automatic shutdown and alarm when reaching user-set test count
Technical Parameters
| Parameter | Specification |
| Maximum test sample size | Width 1200mm, length 1700mm |
| Vertical force | 0-750N |
| Horizontal force (push-pull) | 0-500N |
| Force sensor | 1000N, accuracy 0.3% |
| Force sensor quantity | 1 group |
| Servo motor | 1 |
| Stroke | 0-200mm |
| Force application cycle times | 0-99999 can be set |
| Equipment dimensions | 1500*1000*1800mm |
| Equipment frame | Assembled from aluminum profiles |
| Power Supply | AC220V 50Hz |

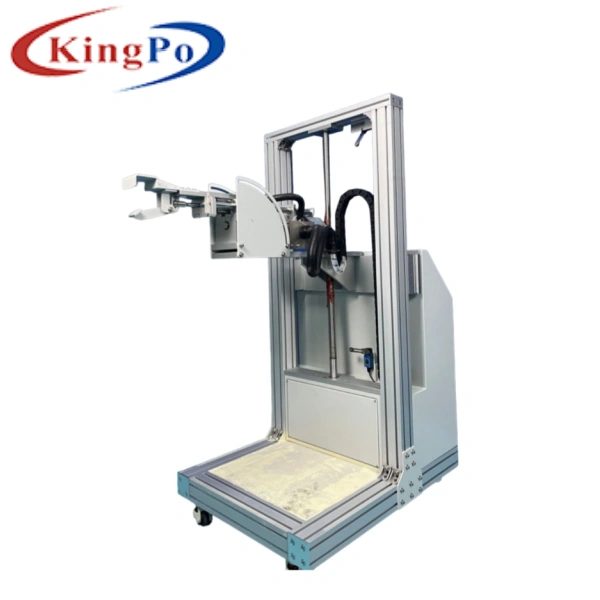

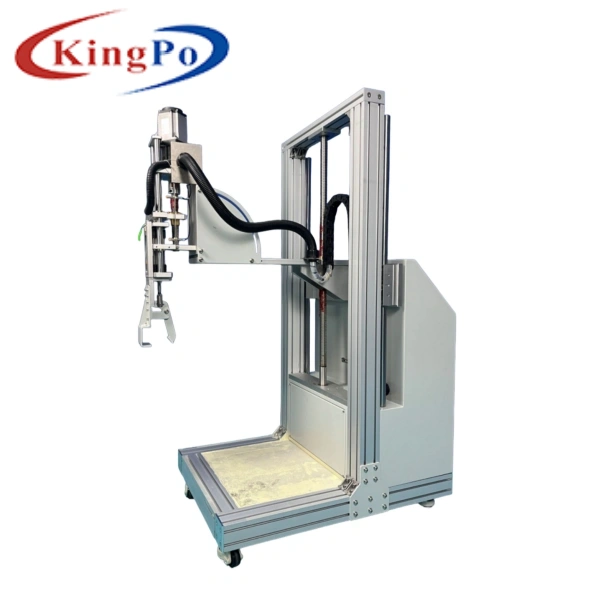

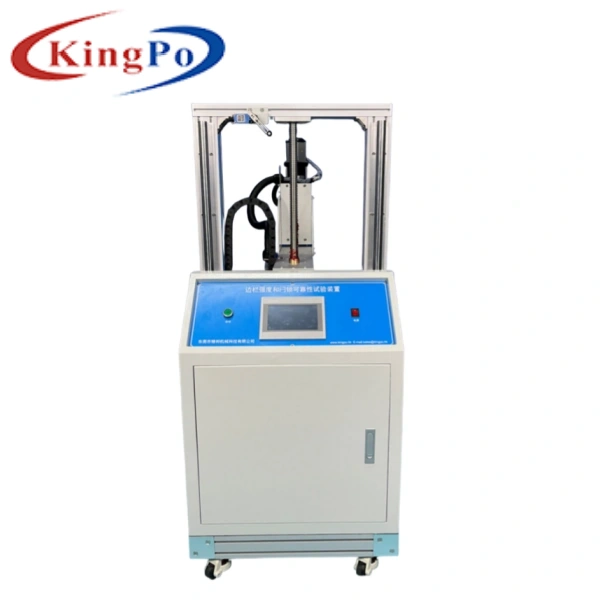

Detail Display - IEC 60601-2-52 Medical Bed Tester, Side Rail Strength and Latch Reliability Tester
