IEC60245-1 Clause 3.2 Static Flexibility Tester For Arc – Welding Electrode Cables And Lift Cables
IEC60245-1 Static Flexibility Tester evaluates mechanical strength for durable arc-welding and lift cables.
MOQ: 1
Price: To be Quoted
Standard Packaging: satety plastic tool box or plywood package.
Delivery Period: 25
Payment Method: T/T
Supply Capacity: 100 sets per month
Product Description
Static Flexibility Tester For Checking Mechanical Strength of Completed Flexible Cables / Rubber Insulated Cables
Product Introduction:

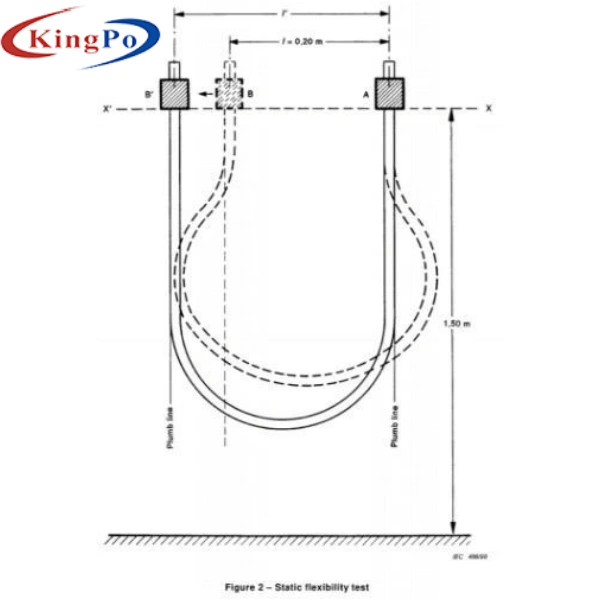

This apparatus conforms to IEC60245-1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements,IEC60245-2 clause 3.2 and Figure 2 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.
It is used for checking mechanical strength of completed flexible cables. This test does not apply to flexible cables with cores of nominal cross-sectional area greater than 4mm2 and cables having more than 18 cores laid up in more than two concentric layers.
Detail Information
| Place of Origin | China | Brand Name | KingPo |
| Certification | Calibration certificate | Model Number | KP-SF56 |
| A, B Clamping Head Initial Distance: | 200mm | A And B, Shall Be Located At A Height Above Ground Level: | At Least 1.5m |
| Sample Length: | 3±0.05m | The Cable Being Turned In The Clamp: | 180° |
| Standard: | IEC60245-1 Clause 3.2 | Test Purpose: | Check Mechanical Strength Of Cables |
| Highlight: | High Frequency Spark Tester, Bend Test Machine | ||
Get Free Quote of IEC60245-1 Clause 3.2 Static Flexibility Tester For Arc - Welding Electrode Cables And Lift Cables
Technical Parameters
| A, B clamping head initial distance | 200mm |
| A and B, shall be located at a height above ground level | At least 1.5m |
| Sample length | 3±0.05m |
| The cable being turned in the clamp | 180° |
| Number of testing times | 2 |

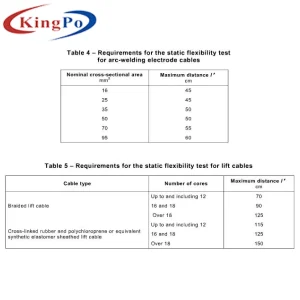

Standard Screenshot
