IEC60884-1 Figure 21 Plug Cord Flexing Testing Machine / Apparatus For Flexing Test
IEC60884-1 Plug Cord Flexing Tester simultaneously tests six cables for 10,000 flexes, ensuring durability and detecting internal wiring faults.
MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Payment Method: T/T
Product Description

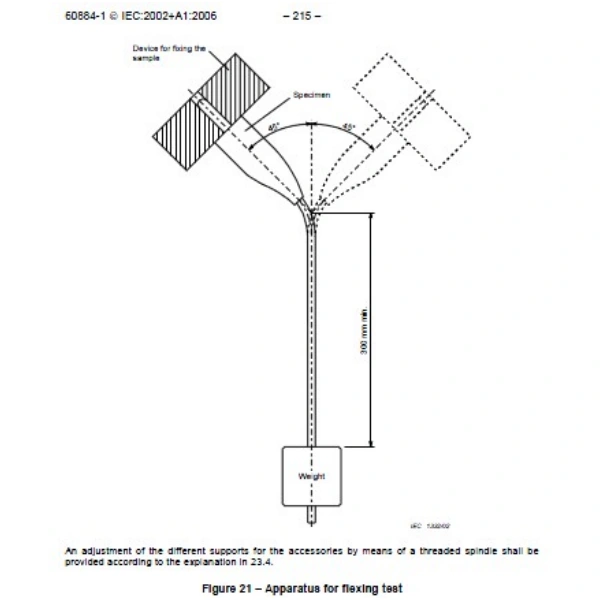

The FL-1 Plug Cord Flexibility Tester is designed and manufactured according to the standard requirement of IEC 60884-1 figure 21 which calls for 10,000 flexing at a rate of 60 flexing per minute. Six cables or cords fitted with plugs can be tested simultaneously. The cables are connected to a socket and the tail of the cable is connected to the tester to detect if an internal fault occurs with the cable wiring or accessory connection. The instrument starts in a vertical orientation and then flexes the specimens 45° on either side of the vertical for a total 90° of flexing. A standard rate of 60 flexing per minute is used but a slower rate can be selected if desired.
A set of customer selected weights are included with the instrument so that the proper force can be applied to the cable during the test.
Detail Information
| Place of Origin | China | Brand Name | KingPo |
| Certification | Calibration Certificate | Model Number | KP-PC06 |
| Power Supply: | AC220V 50Hz Or 115V 60Hz | Number Of Working Stations: | 6, With 6 Sets Of Clamp Device |
| Rate Of Testing: | 10~60 Times/min(selectable) Individual Counts For Each Station | Number Of Flex Per Test: | Swivel Angle On Either Side For 45° , 60°, Or 90°(or 180°)(selectable) |
| Weight: | 10N/20N*6(the Weight Of UL113g And 284g Can Be Customized) | Dimensions: | W*L*H=500mm *1000mm* 1100mm |
| Highlight: | High Frequency Spark Tester, Bend Test Machine | ||
Get Free Quote of IEC60884-1 Figure 21 Plug Cord Flexing Testing Machine / Apparatus For Flexing Test
Technical Parameters
| Power Supply | 220V 50Hz or 115V 60Hz |
| Number of Flex Per Test | 1-999999 (selectable) |
| Number of Test Station | 6, with 6 sets of clamp device |
| Rate of Flexing | 10~60 times/min(selectable) individual counts for each station |
| Flexing Angle | Swivel angle on either side for 45° , 60°, or 90°(or 180°)(selectable) |
| Weight | 10N/20N*6(the weight of UL113g and 284g can be customized) |
| Dimensions | W*L*H=500mm *1000mm* 1100mm |
| Conforms to standard | IEC884-1 Figure 21 and clause 23.4, IEC320-1, VDE0620 |
| Mechanical theory | The crank block on the reduction gearbox is driven by the electric motor to do the reciprocating action. |
Using Method
Set up the testing sample on the swing fixture and conduct the circuit. In the other side, the according weight is used, then set the flexing angle and testing times as well as the required speed. Then start the equipment. When the sample is broken off, the corresponding counter stops working and the indicator light off. At that time, the counter displayed is the testing times of the samples. When the total testing times are reached, the equipment will stop working.
This testing machine can be connected with Load of power line tester for the load test.
