IEC62262 Mechanical Strength Tester On Sheet Metal / Pendulum Impact Test Apparatus For Energy Impact Test
IEC62262 Pendulum Impact Tester evaluates sheet metal mechanical strength with precise, compliant energy impact assessments.
MOQ: 1
Price: To be Quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: 25 working days
Payment Method: T/T
Supply Capacity: 50 sets per month
Product Description

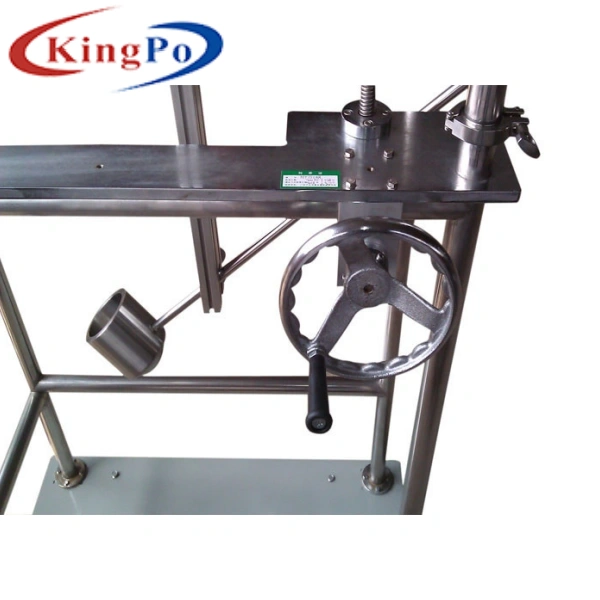

This testing device conforms to IEC62262. It is used for the mechanical strength test of the sheet metal like the substation ark and the metalloid electric energy metering cubicle. The mounting bracket and the angle of impact are adjustable. This device is for the energy impact test (the energy is more than 2J).
Detail Information
| Place of Origin | China | Brand Name | Kingpo |
| Certification | Calibration Certificate | Standard: | IEC62262 |
| Purpose: | For The Mechanical Strength Test Of The Sheet Metal | Pendulum Length: | 1000mm |
| Pendulum External Diameter: | 5.9 Mm | Pendulum Thickness: | 1.5 Mm |
| Material: | Steel | ||
| Highlight: | High Frequency Spark Tester, Bend Test Machine | ||
Get Free Quote of IEC62262 Mechanical Strength Tester On Sheet Metal / Pendulum Impact Test Apparatus For Energy Impact Test
Technical Parameters

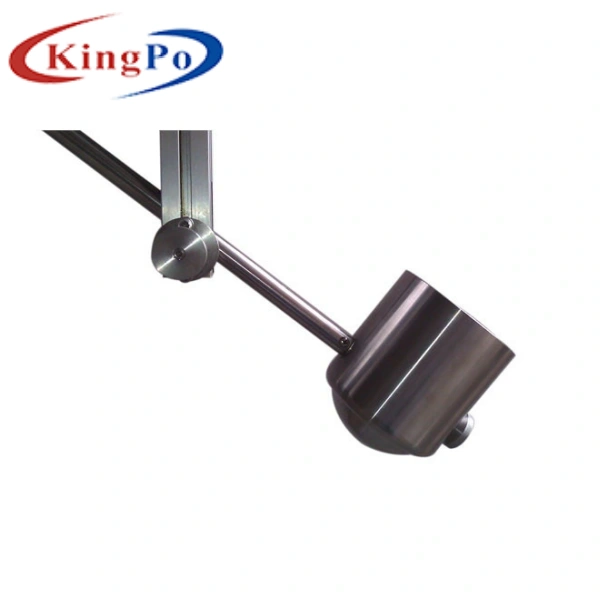

Pendulum: Length: 1000mm; external diameter: 15.9 mm; thickness: 1.5 mm; material: steel;
The impact height can be adjustable (200-1200mm). It can be customized. The impact apparatus can be moved on all sides.
The Feature of the Striking Elements
| energy/J | ≤1
±10% |
2
±5% |
5
±5% |
10
±5% |
20
±5% |
50
±5% |
| Equivalent mass±2%kg | 0.25(0.2) | 0.5 | 1.7 | 5 | 5 | 10 |
| material | nylon | steel | ||||
| R/mm | 10 | 25 | 25 | 50 | 50 | 50 |
| D/mm | 18.5(20) | 35 | 60 | 80 | 100 | 125 |
| f/mm | 6.2(10) | 7 | 10 | 20 | 20 | 25 |
| r/mm | – | – | 6 | – | 10 | 17 |
| l/mm | ||||||

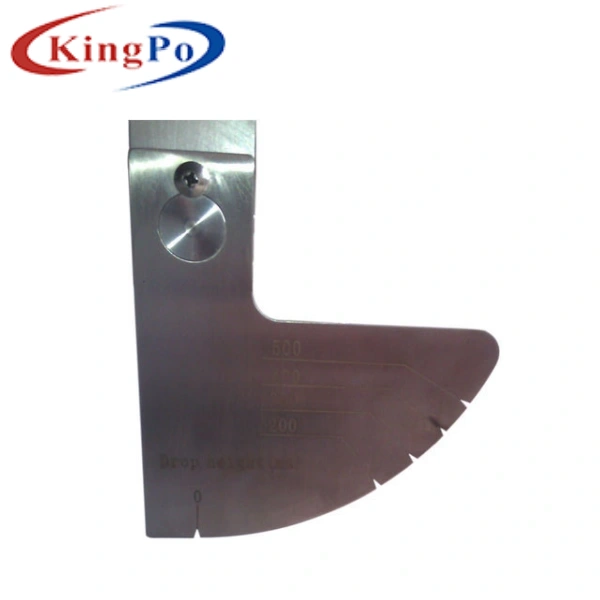

Falling Height
| energy/J | 0.14 | 0.2 | (0.3) | 0.35 | (0.4) | 0.5 | 0.7 | 1 | 2 | 5 | 10 | 20 | 50 | ||
| Equivalent mass/kg | 0.25 | (0.2) | 0.25 | (0.2) | 0.25 | (0.2) | (0.2) | 0.25 | 0.25 | 0.25 | 0.5 | 1.7 | 5 | 5 | 10 |
| Dropping height±1%mm | 56 | (100) | 80 | (150) | 140 | (200) | (250) | 200 | 280 | 400 | 400 | 300 | 200 | 400 | 500 |
IK Code and the Corresponding Impact Energy
| IK code | IK00 | IK01 | IK02 | IK03 | IK04 | IK05 | IK06 | IK07 | IK08 | IK09 | IK10 |
| Impact energy/J | a | 0.14 | 0.2 | 0.35 | 0.5 | 0.7 | 1 | 2 | 5 | 10 | 20 |
