IPX1-6 Ingress Protection Test Equipmnent IEC60529 Waterproof Degrees Test Chamber IPX1/2 IPX3/4 IPX5/6
MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: 25 working days
Payment Method: T/T
Supply Capacity: 3-5 sets per month
Product Description
IEC60529 IPX1-6 Waterproof Degrees Test Equipment Ingress Protection Test Chamber
IPX1/2, IPX3/4 ,IP5/6 waterproof degrees test equipment are designed and manufactured according to IEC 60529 < Degrees of protection provided by enclosures (IP Code)>. This equipment is applied in IPX1, IPX2, IPX3 ,IPX4,IPX5 ,IPX6 waterproof degrees testing purposes, which are widely adopted by luminaire products, electrical and electronic products certification institutions, testing organizations and production enterprises for quality control.
Detail Information
| Place of Origin | China | Brand Name | Kingpo |
| Certification | iso9001 ce | Model Number | KP-IPX1-6 |
| Drip Area: | 800*800mm | Oscillating Tubes: | Φ400mm |
| Drip Hole Aperture: | 0.4mm | Drip Rate: | 1mm/min Or 3mm/min Adjustable |
| IPX5 Nozzle Diameter: | 6.3mm | IPX6 Nozzle Diameter: | 12.5mm |
| IPX5 Water Flow: | 12.5±0.62 L/min | IPX6 Water Flow: | 100±5 L/min |
| Water Pressure: | Adjustment | Power Supply: | 380V 50Hz |
| Highlight: | rain test equipment, salt spray test chamber | ||
Get Free Quote of IPX1-6 Ingress Protection Test Equipmnent IEC60529 Waterproof Degrees Test Chamber IPX1/2 IPX3/4 IPX5/6
Application
This equipment is suitable for the test of electrical products which are enclosure and sealed in the rain environment whether can ensure the good performance of equipment and components. The scientific design of this equipment, so that the equipment can be realistically simulated dripping water, water spraying, splashing water etc. The application of the comprehensive control system and the frequency conversion technology makes the rotation angle of the test sample rack. The swing angle of the pendulum rod and the swing frequency of the spray water can be adjusted automatically.
Technical Parameters
Model:KP-IPX1-6
IPX1/2

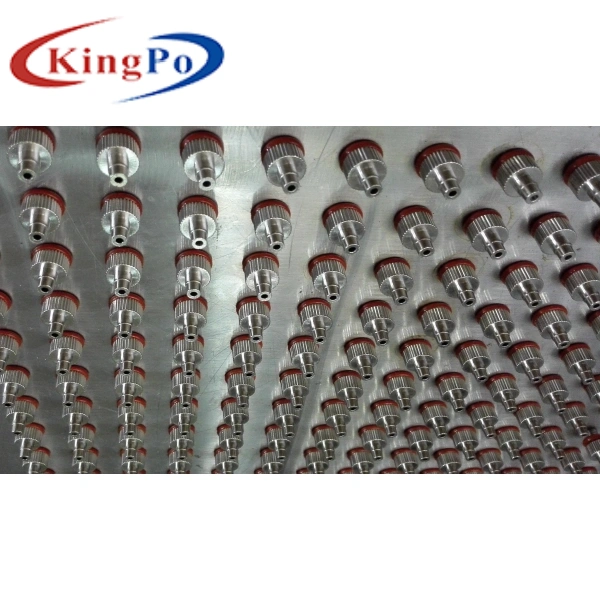

1. Drip board area: 800 X800mm
2. Aperture of drop : 0.4mm
3. Pitch-row(mm): 20 mm X 20 mm
4 Delivery rate: Manual(IPX1:1±0.5mm/min, IPX2: 3±0.5mm/min)
5. Product under test (max): 50kg,
6. Turntable speed: 1 RPM ( With Adjustable Speed)
7. Turntable angle: 15°
8. Test time: 0~9999min
IPX3/4

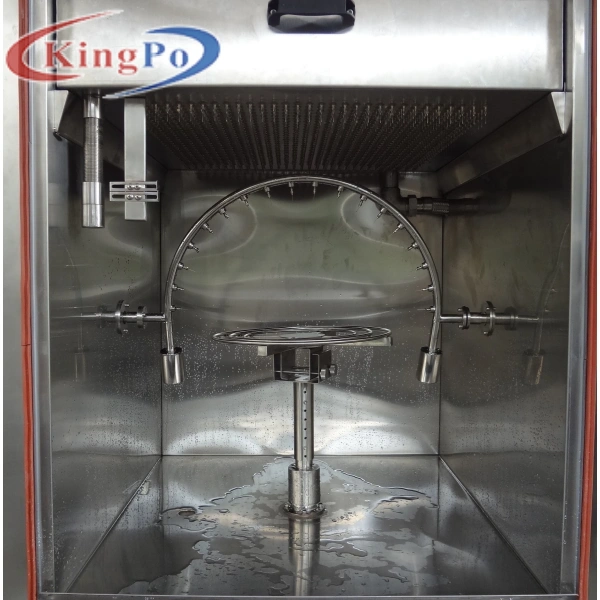

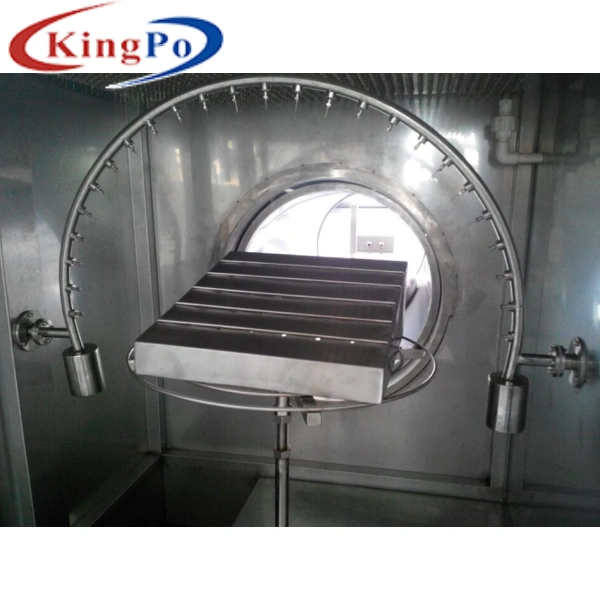

1 Oscillating tubes :R400
2 Oscillate angle: 120º (IPX3), 350º (IPX4) or user-defined ( Adjustable angle)
3 Inner diameter of oscillating tube (mm) : 15
4 Hole Pitch : 50 mm
5 Diameter of blowhole: 0.4 mm
6 Water flow rate per hole : 0.07 L/ min ( Adjustable)
7 Height of turntable: 200-700 mm (Adjustable)
8 Product under test (max): 0-50 kg(can customize)
9 Material of tube: SUS304 stainless steel (Preferred)
10 Duration of test : 0~9999min
11. The drip hole has a protective plate to prevent accidental injury to the operator.

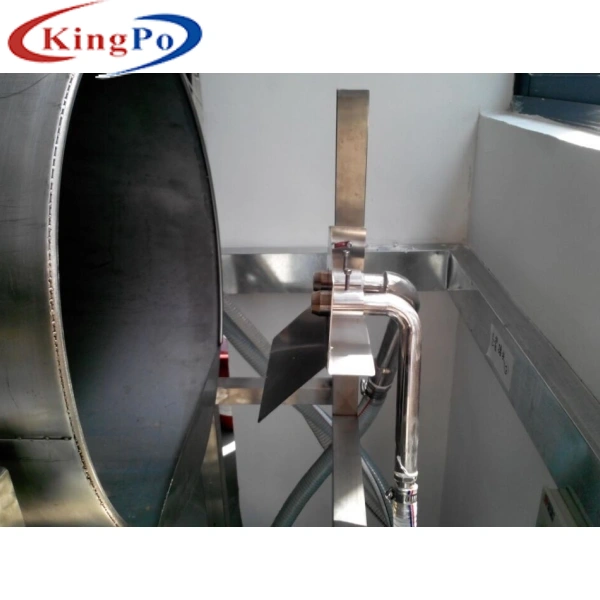

IPX5/6
1 Control system: PLC controlled
3 IPX5 nozzle diameter: 6.3 mm
4 IPX6 nozzle diameter: 12.5 mm
5 IPX5 water flow: 12.5±0.62 L/min
6 IPX6 water flow: 100±5 L/min
7 Water pressure: adjustment
Structural Material
1. High- quality acid -proof stainless steel 304 inner liner.
2. Outer box is made of stainless steel 304.
3. The sample table is equipped with a circular turntable with adjustable speed.
Safety Protection Device
- Power overload and short circuit protection
- Ground protection
- Water shortage protection
- Alarm ring prompt
