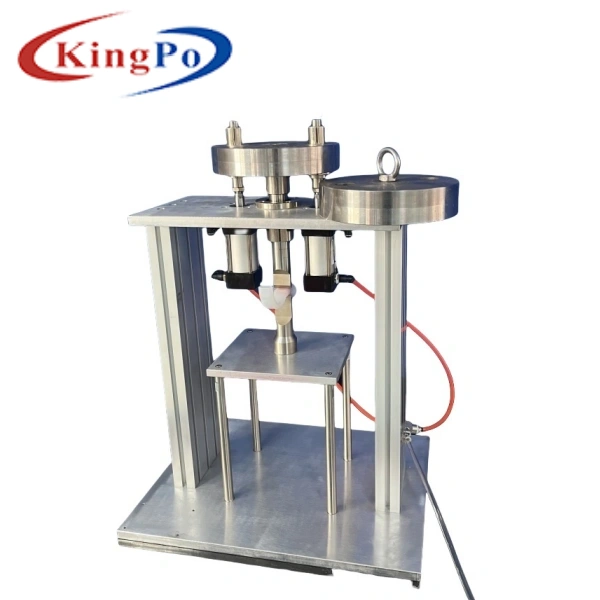

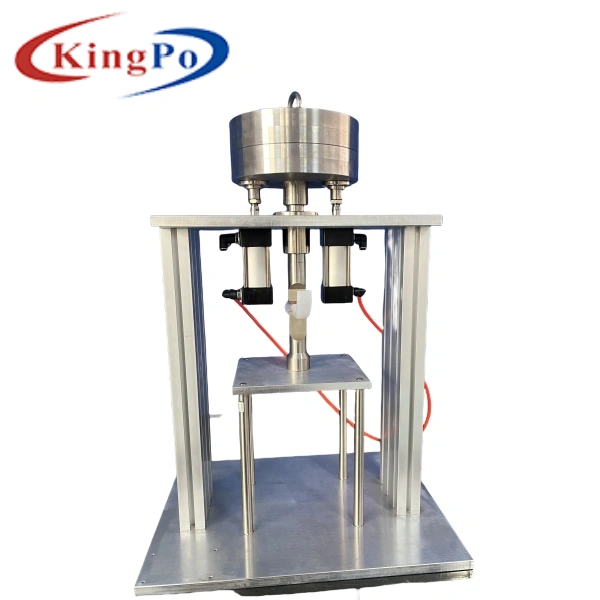

ISO 5364 Apparatus For Testing Resistance To Collapse Of The Buccal Portion
ISO 5364 Buccal Portion Collapse Tester ensures anesthesia mask integrity, maintaining airway patency for ultimate patient safety compliance.
MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: 7 working days
Payment Method: T/T
Supply Capacity: 10 pcs per month
Detail Information
| Place of Origin | China | Brand Name | Kingpo |
| Certification | ISO 17025 | Model Number | ISO 5364 Figure B.1 |
| Warranty: | 1 Year | ||
| Highlight: | ISO 5364 collapse resistance testing apparatus, Buccal Portion Collapse Resistance Testing Apparatus | ||
Product Description

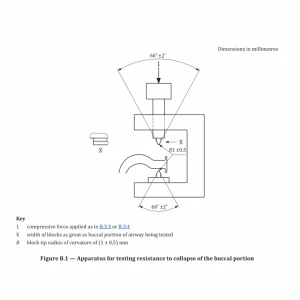

ISO 5364 Figure B.1 Apparatus for testing resistance to collapse of the buccal portion
According to the Standard
ISO 5364 -Annex B
Feature
The weights are driven by pneumatic force. During the test, only the driving air source needs to be provided for operation, and no power is required. It will automatically stop when the force value is reached, and the force value is precise. Simple operation
Technical Parameters
Axial force: 100N,200N
Pressing block Angle: 60°±2°
The arc Angle of the press block: R1±0.5
