ISO 6722-1 Clause 5.12.4.1 Apparatus For Sandpaper Abrasion Test / Auto Cable Insulation Jacket Abrasion Resistance Test
This ISO 6722-1 Clause 5.12.4.1 apparatus performs automated sandpaper abrasion tests on auto cable insulation jackets for reliable durability assessment.
MOQ: 1
Price: To be quoted
Standard Packaging: satety plastic tool box or plywood package
Payment Method: T/T
Supply Capacity: 200 per month
Product Description
ISO 6722-1 Clause 5.12.4.1 Apparatus for Sandpaper Abrasion Test / Auto-Cable Insulation Jacket Abrasion Resistance Test
Standards: ISO 6722-2006, QC/T 730-2005, JASO D608-92, JASO D611-94, SAE J1127, SAE J1128, JIS C3406 etc.
Application: Applied to test the resistance to abrasion of Auto cable insulation jacket in moving condition.
Detail Information
| Place of Origin | China | Brand Name | KingPo |
| Certification | Calibration certificate | Standard: | ISO 6722-1 Clause 5.12.4.1, |
| Applicable Wire Diameter: | 0~15mm | Abrasive Belt Counting Range: | 0~5000mm |
| Abrasive Belt Movement Speed: | 1500mm/min | Supporting Pin: | Diameter 7mm |
| Test Voltage: | 10V | ||
| Highlight: | High Frequency Spark Tester, Bend Test Machine | ||
Get Free Quote of ISO 6722-1 Clause 5.12.4.1 Apparatus For Sandpaper Abrasion Test / Auto Cable Insulation Jacket Abrasion Resistance Test
Technical Parameters
1. Applicable wire diameter: 0~15mm
2. Abrasive belt counting range: 0~5000mm
3. Abrasive belt movement speed: 1500mm/min
4. Supporting pin: diameter 7mm
5. Test voltage: 10V
6. Weight: 50g, 100g, 200g, 500g, 1500g, each one
7. Weight holder: 1/32R, 1/16R, 3/16R, each one
8. Included angle of abrasive beltand sample: 300(adjustable)
9. Conductive bar width: 5-10mm
10. Distance of conductive bars: 150mm
12. Power:220V 50Hz

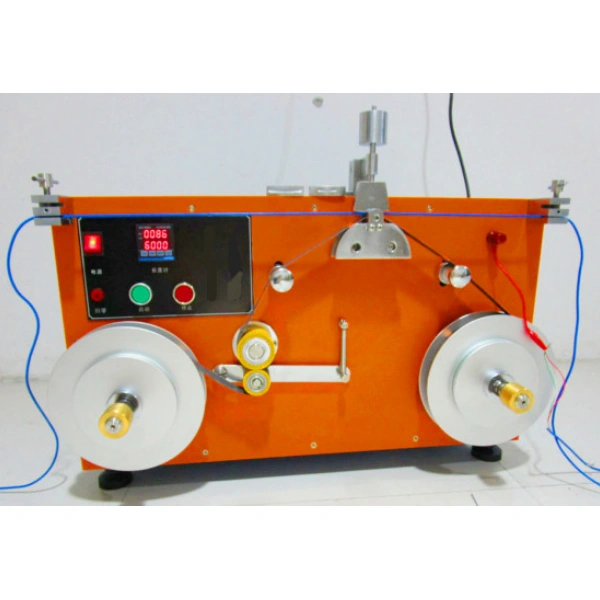

Detail Display - ISO 6722-1 Clause 5.12.4.1 Apparatus For Sandpaper Abrasion Test / Auto Cable Insulation Jacket Abrasion Resistance Test
