ISO 80369-7 Fig C.4 Luer Gauges Male Reference Conical Fitting For Testing Female Luer Lock Fittings For Leakage, Ease O
MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: 7 working days
Payment Method: T/T
Supply Capacity: 10 pcs per month
Detail Information
| Place of Origin | China | Brand Name | Kingpo |
| Certification | Iso9001 Ce | Model Number | ISO 80369-7 |
| Material: | Hardness Steel | Standard: | ISO 80369-7 |
| Hardness: | HRC58-62 | Warranty: | 1 Year |
| Product Name: | LUER GAUGE | ||
| Highlight: | ISO 80369-7 Fig C.4 Luer Gauges, Hardness Steel Luer Gauges, HRC58-62 Hardness Luer Gauges | ||
Product Description
These Gauges are necessary to check LUER and LUER-Lock Systems regarding the measuring, leakage, ease of assembly, separation force and unscrewing torque as well as the overriding resistance and stress cracking in accordance to ISO 80369-7:2016(E).
Shipping is extra from the China
Delivery date: 7-20 working days
Including third party calibration report
Get Free Quote of ISO 80369-7 Fig C.4 Luer Gauges Male Reference Conical Fitting For Testing Female Luer Lock Fittings For Leakage, Ease O
ISO 80369-7:2016(E)
Fig C.1
Female reference conical fitting for testing male Luer lock fittings for leakage, ease of assembly, unscrewing torque and stress cracking
Fig C.2
Male reference conical fitting for testing female Luer slip fittings for leakage, ease of assembly, unscrewing torque and stress cracking
Fig C.3
Female reference conical fitting for testing male Luer lock fittings for separation force and resistance to overriding

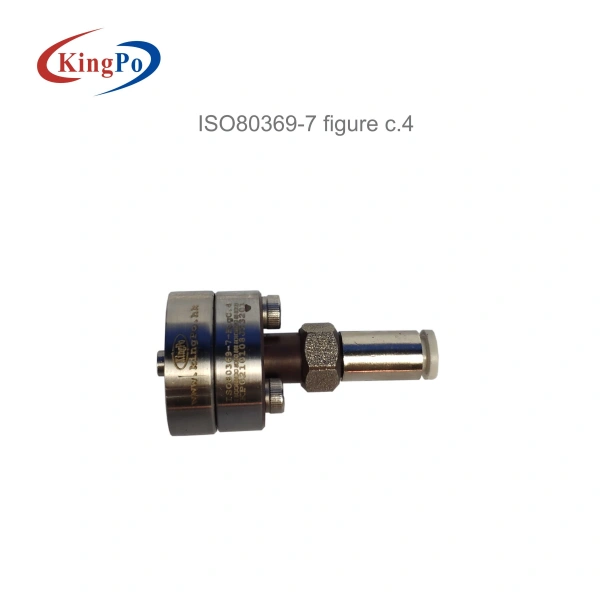

Fig C.4
Male reference conical fitting for testing female Luer lock fittings for leakage, ease of assembly, unscrewing torque and stress cracking
Fig C.5
Female reference conical fitting for testing male Luer slip fittings for leakage, separation and stress cracking
Fig C.6
Male reference conical fitting for testing female Luer lock fittings for separation force and resistance to overriding
