ISO 80369-7-Figure C.2 Male Reference Luer Slip Connector For Testing Female Luer Connectors
ISO 80369-7 Male Luer Slip Connector precisely tests female Luer connectors for leakage and separation force, ensuring reliable safety compliance.
MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: 7 working days
Payment Method: T/T
Supply Capacity: 50 pcs per month
Detail Information
| Place of Origin | China | Brand Name | Kingpo |
| Certification | ISO 17025 Calibration Certificate | Model Number | ISO 80369-7-Figure C.2 |
| Material: | Hardness Steel | Hardness: | HRC58-62 |
| Standard: | ISO 80369-7-Figure C.2 | ||
Product Description
ISO 80369-7: 2017 Small-bore connectors for liquids and gases in healthcare applications – Part 7: Connectors for intravascular or hypodermic applications

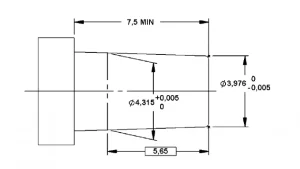

NOTE 1 Cone taper (0,06:1).
NOTE 2 R may be 0,5 mm (maximum) × 45° chamfer. The minimum length of the male taper of 10,5 mm is required for testing non-interconnectable characteristics. A minimum length of the male taper of 7,5 mm may be used for the performance tests of Clause 6.
ISO 80369-7-Figure C.2 Male Reference Luer Slip Connector is a precision-engineered medical device testing tool designed to evaluate female luer connectors for compliance with ISO 80369-7 standards. This reference connector is critical for assessing leakage, separation from axial load, stress cracking, and non-interconnectable characteristics in female luer slip connectors, ensuring patient safety and device reliability.
Get Free Quote of ISO 80369-7-Figure C.2 Male Reference Luer Slip Connector For Testing Female Luer Connectors
Key Features
- ISO 80369-7-Figure C.2 Compliant – Meets strict international standards for luer connector testing
- Leakage Testing – Validates fluid-tight seals in female luer slip connectors
- Axial Load Separation Testing – Ensures connectors withstand mechanical forces without failure
- Stress Cracking Resistance – Assesses durability under repeated use and chemical exposure
- Non-Interconnectable Design – Confirms compliance with ISO 80369-7 to prevent misconnections
- Precision-Machined – High-quality materials for accurate, repeatable test results

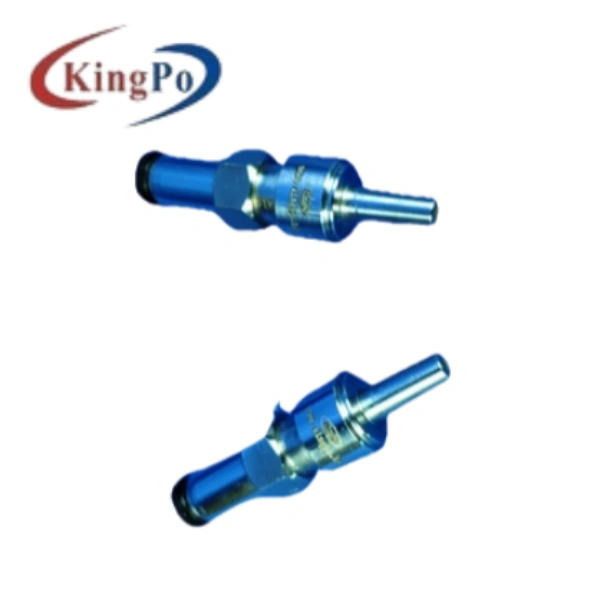

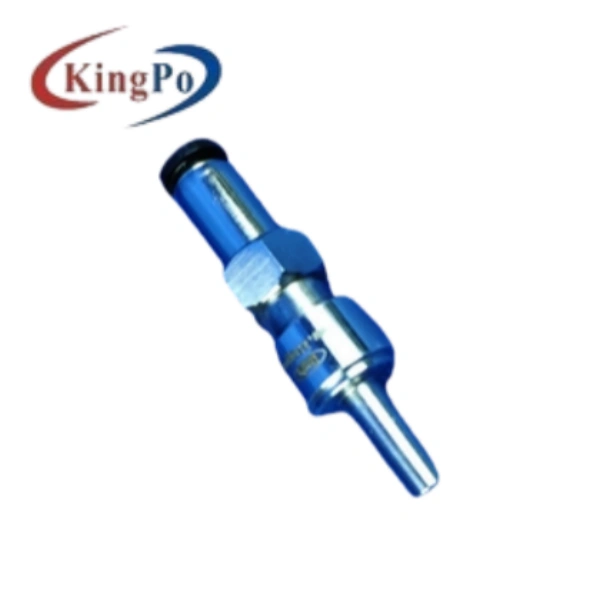

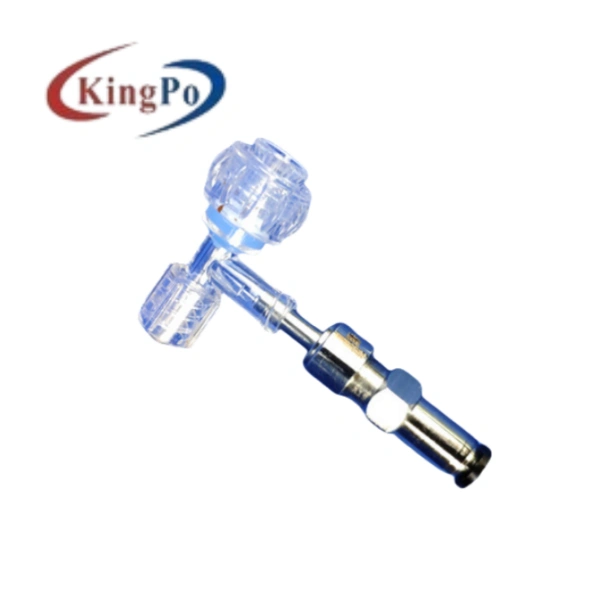

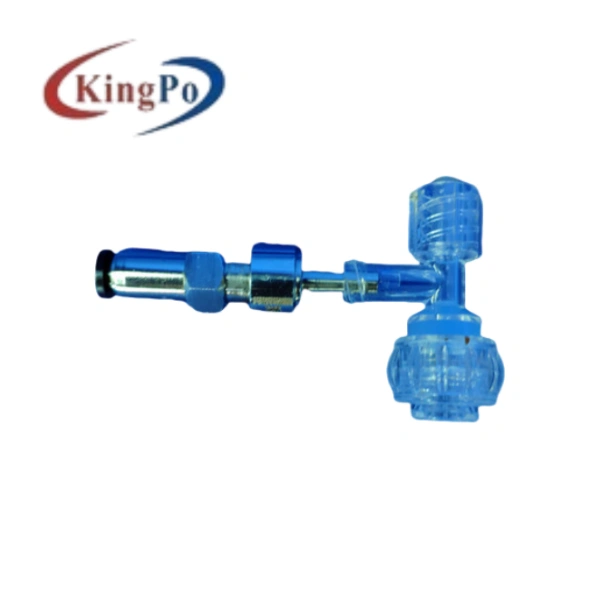

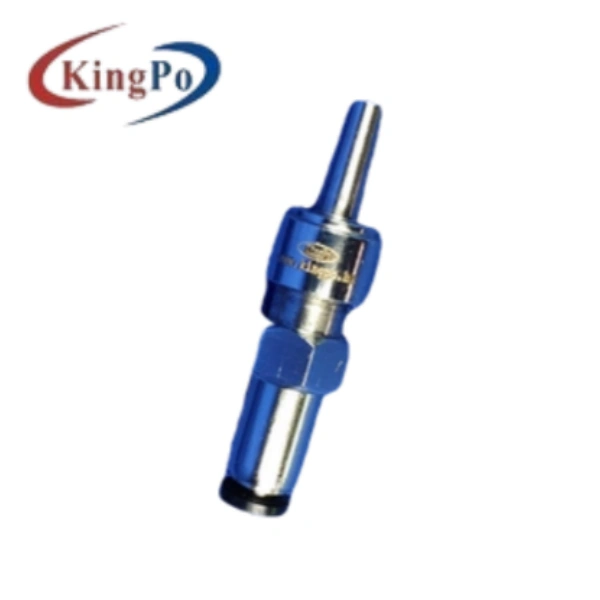

Detail Display - ISO 80369-7-Figure C.2 Male Reference Luer Slip Connector For Testing Female Luer Connectors
