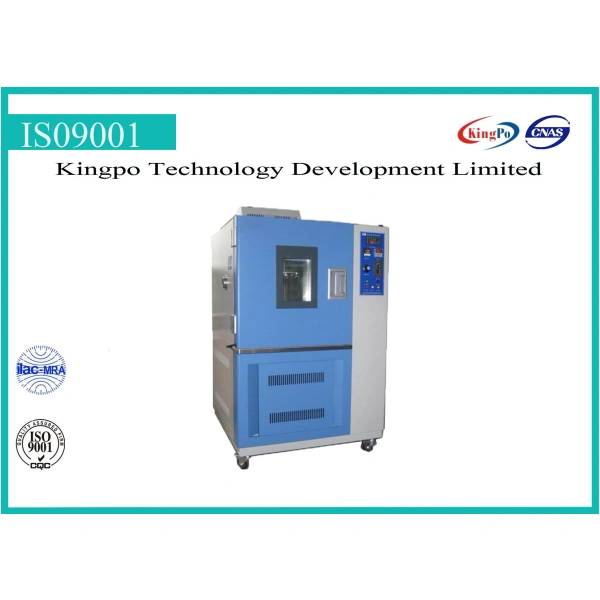

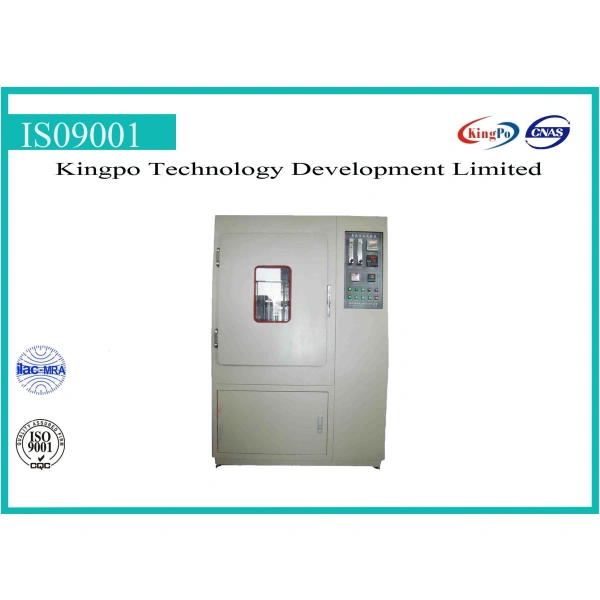

Ozone Test Chamber / Ozone Resistance Test For Rubber KP-CY-150 / KP-CY-500
The Ozone Test Chamber (KP-CY series) precisely evaluates rubber ozone resistance for reliable durability and compliance testing.
MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Delivery Period: 35 working days
Payment Method: T/T
Supply Capacity: 3 sets per month
Products Categories
Get A Free Quote
Product Description
The product is suitable for examining the obvious difference of rubber material under difference ozone concentration and temperature.To what extent damage will be caused by tensile strain ozone test and used product influenced by ozone depends on size,type and strain size .
Detail Information
| Place of Origin | China | Brand Name | KingPo |
| Certification | iso9001 ce | Model Number | KP-CY-150 / KP-CY-500 |
| Ozone Concentration: | 10-1000PPhm（directly Read And Control） | Ozone Concentration Difference: | ≤10% |
| Test Chamber Temperature: | RT+10℃～60℃ | Temperature Uniformity: | ±2℃ |
| Temperature Fluctuations Degree: | ≤±0.5℃ | Sample Swiveling Speed: | (20-25)mm/s |
| Gas Velocity Of Test Chamber: | 8-16mm/s | Dynamic Clamp: | 6 Sets Of Chuck（optional） |
| Highlight: | ozone test chamber, climatic test chamber | ||
Get Free Quote of Ozone Test Chamber / Ozone Resistance Test For Rubber KP-CY-150 / KP-CY-500
Technical Parameters
| type | KP-CY-150 | KP-CY-500 |
| Interior dimension | D500 x W500 x H600MM | D800 x W800 x H800MM |
| Ozone concentration | 10-1000PPhm(directly read and control) | |
| Ozone concentration difference | ≤10% | |
| Test chamber temperature | RT+10℃～60℃ | |
| Temperature uniformity | ±2℃ | |
| Temperature fluctuations degree | ≤±0.5℃ | |
| Sample swiveling speed | (20-25)mm/s | |
| gas velocity of test chamber | 8-16mm/s | |
| Dynamic clamp | 6 sets of chuck(optional) | |
| Exterior material | SUS202# stainless steel/ cold rolled sheet with plastic spray | SUS202#stainless steel/ cold rolled sheet with plastic spray |
| Interior material | SUS202#stainless steel | SUS202#stainless steel |
| Exterior dimension | D1000 X W1300 X H1700Mm | D1200 X W1500 X H1850Mm |
| controller | Independent R&D PLC touch screen controller | Independent R&D PLC touch screen controller |
| Power | 1.5KW(according to load requirements) | 2KW(according to load requirements) |
| nominal voltage | 220V 50HZ / 380V 50HZ | |
