Three Vertical Bar Signal IEC62368 Three Vertical Bar Signal.RDL-100 video signal generator
The RDL-100 video signal generator delivers precise IEC62368 Three Vertical Bar Signals for reliable enterprise-level AV equipment testing and compliance.
MOQ: 1
Price: To be quoted
Standard Packaging: safety carton pack or plywood box
Payment Method: T/T
Product Description
The product is used for the testing of digital TV, providing a test signal for television test experiments. The product can produce the video test signals for the CVBS, YPbPr and HDMI interfaces to meet the requirements of the TV test.
Application field:
- TV safety test experiment;
- TV electromagnetic compatibility test experiment;
- Other related test experiments of TV sets;
Detail Information
| Place of Origin | China | Brand Name | Kingpo |
| Certification | iso9001 ce | Model Number | KP-6215 |
| Number Of Measurements: | Maximum 10); | Tabs: | 11 In Total |
| Tab 0: | Waveform Of The Test Voltage And Some Settings | Tabs 1 To 10: | Results Of Each Test |
| Waiting Time: | Default 12 | Threshold: | Default 98 |
| Highlight: | IEC62368 Three Vertical Bar Signal, IEC62368 Testing Equipment, Three Vertical Bar Testing Equipment | ||
Get Free Quote of Three Vertical Bar Signal IEC62368 Three Vertical Bar Signal.RDL-100 video signal generator
Functional Features
- It includes three interface types: CVBS, YPbPr and HDMI;
- Support for PAL and NTSC calibration and clearing video format;
- Support for 1280720p 50Hz, 1280720p 60Hz, 19201080i 50Hz, 19201080i 60Hz, 19201080p 25Hz, 19201080p 30Hz, 19201080p 50Hz, 19201080p 60Hz HD video formats;
- Support for ultra-HD (4K) video format of 3840 2160 25p and 3840 2160 30p;
Technical Indicators
| interface type | project | scope | metric |
| CVBS | intensity level | (0~700)mV | ±(2%X+6mV) |
| Color level | (0~885.1)mV | ±(2%X+6mV) | |
| chrominance phase | (0~360)° | ±2° | |
| YPbPr | Brightness signal output level (Y) | (0~700)mV | ±(2%X+6mV) |
| Chromatic difference signal output level (Pb, Pr) | (-350~350)mV | ±(2%X+6mV) |

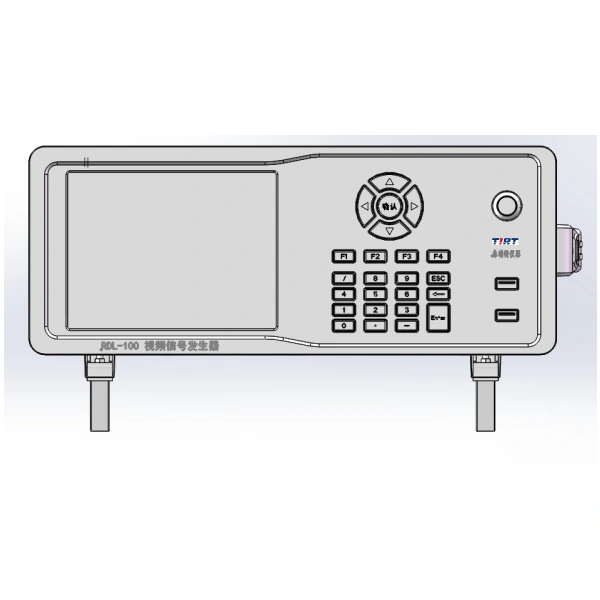

Front Panel Description
1. System display
Display the system control software interface, with a touch screen function, for setting the selection of the system signal, the video format, and the setting of the digital TV modulation signal parameters.
2. key
It is composed of navigation keys (up and down, etc.), digital keyboard and function keys to facilitate users to operate and control the software.
3. USB joggle
Easy for users to connect to the mouse, keyboard, U disk and other external devices.
4. power key
The control system switches and switches.

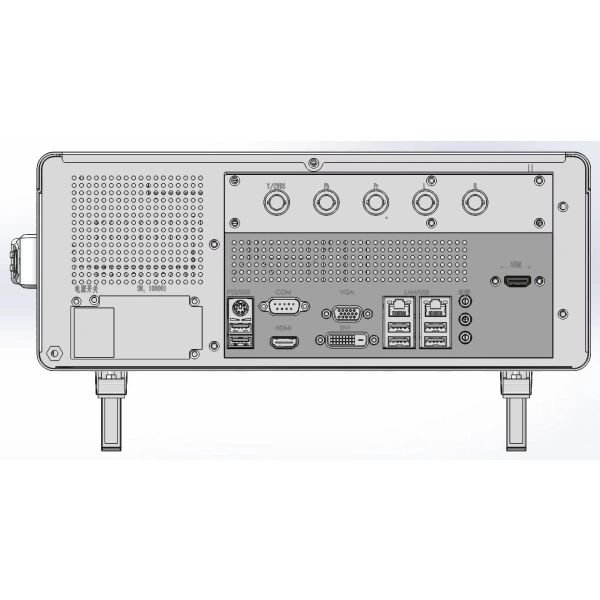

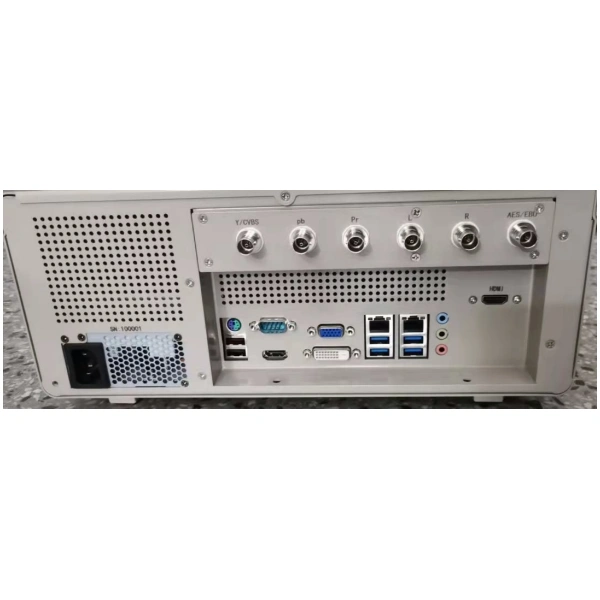

Rear Panel Description
1. The Y / CVBS, Pb, and Pr interfaces
The output interface of analog TV composite signal and chromatic component signal, where Y / CVBS interface outputs composite signal (CVBS) when the signal formats are PAL and NTSC, and the luminance signal in chromatic signal (Y) in other formats.
2. L, R joggle
Audio output interfaces, L and R represent the left and right channels, respectively.
3. HDMI joggle
Digital video signal output interface.
4. System peripherals interface
Easy for users to connect to the monitor, mouse, keyboard, U disk and other external devices.
5. System power supply interface and switch
Connect and control the system power supply
